AT-1420-ST-R

PUI Audio, Inc.

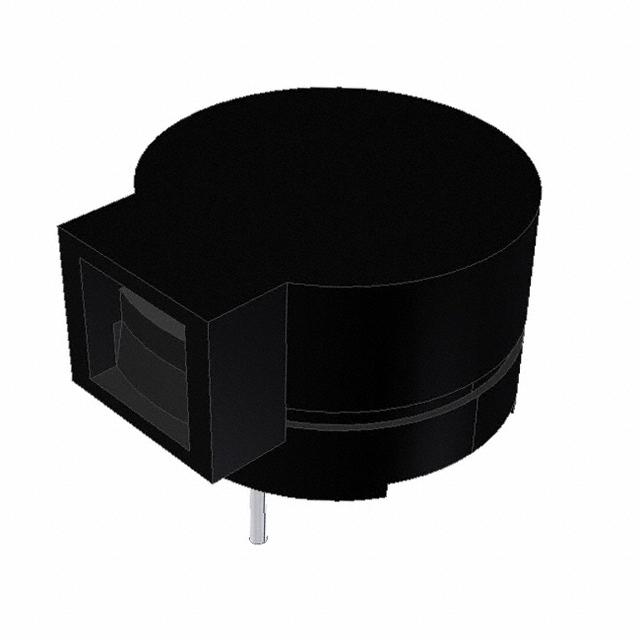

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AT-1420-ST-R
Manufacturer/Brand:	PUI Audio, Inc.
Product description	AUDIO MAGNETIC XDCR 1-3V TH
Datasheets:	AT-1420-ST-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	70132 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 70132 pcs

Reference Price (In US Dollars)

1 pcs: $0.509

10 pcs: $0.404

25 pcs: $0.368

50 pcs: $0.344

100 pcs: $0.32

300 pcs: $0.292

500 pcs: $0.272

1000 pcs: $0.254

5000 pcs: $0.248

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.509

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AT-1420-ST-R

Part Number	AT-1420-ST-R	Manufacturer	PUI Audio, Inc.
Description	AUDIO MAGNETIC XDCR 1-3V TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	70132 pcs	Data sheet	AT-1420-ST-R.pdf
Voltage Range	1 ~ 3V	Voltage - Rated	1.5V
Termination	PC Pins	Technology	Magnetic
Sound Pressure Level (SPL)	80dB @ 1.5V, 10cm	Size / Dimension	0.543" L x 0.472" W (13.80mm x 12.00mm)
Series	AT	Ratings	-
Port Location	Side	Packaging	Tray
Other Names	668-1376 688-1376 688-1376-ND AT-1420-ST-R-ND AT1420STR	Operating Temperature	-20°C ~ 70°C
Operating Mode	Single Tone	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	Peak-Peak Signal
Height - Seated (Max)	0.315" (8.00mm)	Frequency	2.048kHz
Duration	-	Driver Circuitry	Transducer, Externally Driven
Detailed Description	Buzzers Transducer, Externally Driven Magnetic 1.5V 70mA 2.048kHz 80dB @ 1.5V, 10cm Through Hole PC Pins	Current - Supply	70mA
Approvals	-
