Orion Fans

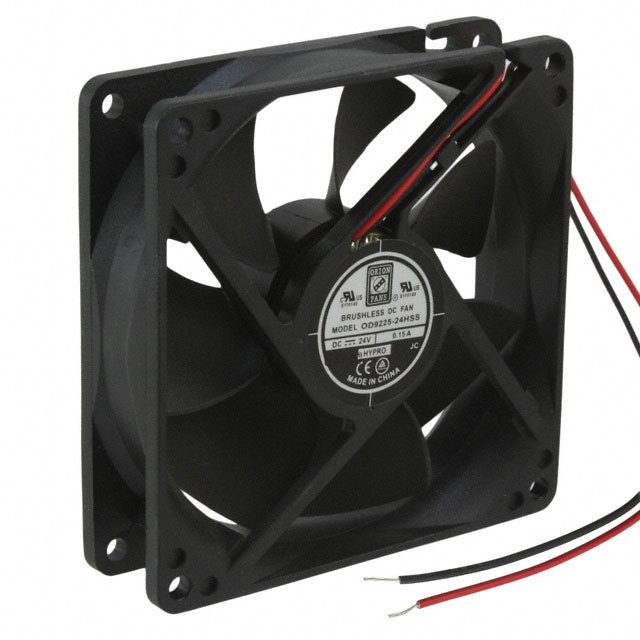

| Part Number | OD9225-24HSS | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 92.5X25MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15952 pcs | Data sheet | 1.OD9225-24HSS.pdf2.OD9225-24HSS.pdf3.OD9225-24HSS.pdf4.OD9225-24HSS.pdf |
| Width | 25.00mm | Weight | - |
| Voltage Range | - | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.130 in H2O (32.4 Pa) |
| Size / Dimension | Square - 92.5mm L x 92.5mm H | Series | OD9225 |
| RPM | 2900 RPM | Power (Watts) | 3.40W |
| Other Names | +OD9225-24HSS 1053-1283 OD9225-24HSSX OD922524HSS |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 35.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Manufacturer Standard Lead Time | 19 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.150A | Bearing Type | Sealed Sleeve |
| Approvals | cURus, TUV | Air Flow | 52.0 CFM (1.46m³/min) |
