Orion Fans

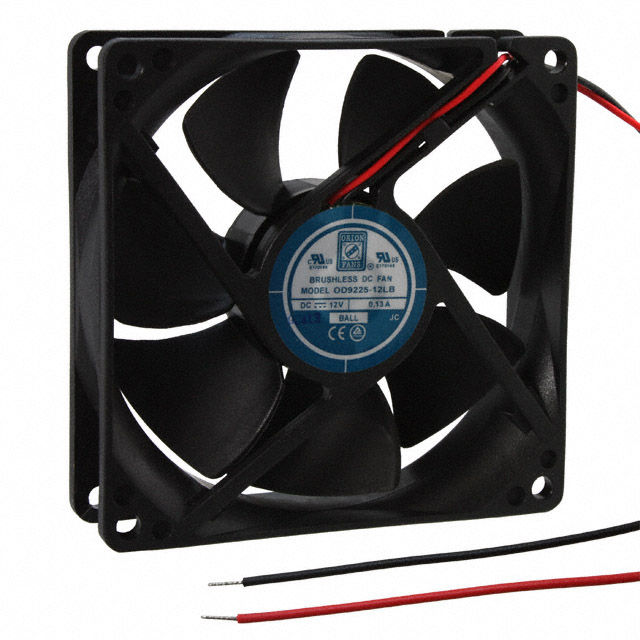

| Part Number | OD9225-12LB | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 92.5X25MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10405 pcs | Data sheet | 1.OD9225-12LB.pdf2.OD9225-12LB.pdf3.OD9225-12LB.pdf4.OD9225-12LB.pdf |
| Width | 25.00mm | Weight | - |
| Voltage Range | 7 ~ 17VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.070 in H2O (17.4 Pa) |
| Size / Dimension | Square - 92.5mm L x 92.5mm H | Series | OD9225 |
| RPM | 2100 RPM | Other Names | 1053-1279 OD9225-12LBX OD922512LB |
| Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) | Noise | 28.0 dB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Manufacturer Standard Lead Time | 19 Weeks |
| Lifetime @ Temp. | 60000 Hrs @ 40°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Fan Type | Tubeaxial | Current Rating | 0.130A |
| Bearing Type | Ball | Approvals | cURus, TUV |
| Air Flow | 39.0 CFM (1.09m³/min) |
