Orion Fans

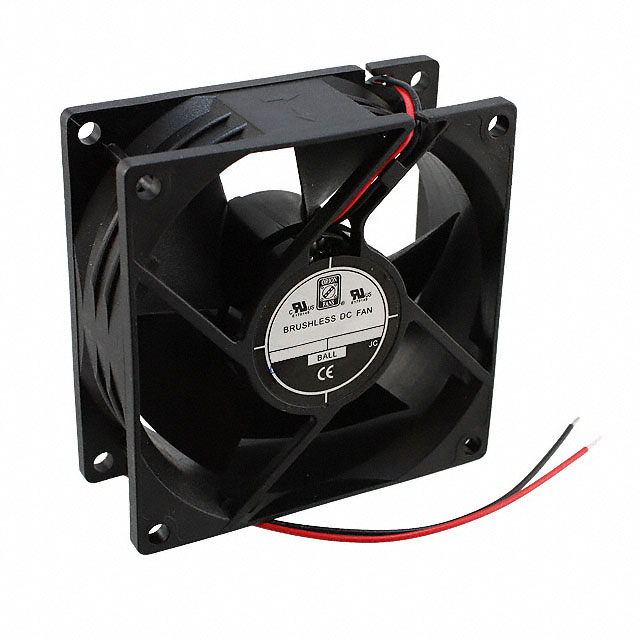

| Part Number | OD8032-24LB | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 80.5X32MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7315 pcs | Data sheet | 1.OD8032-24LB.pdf2.OD8032-24LB.pdf3.OD8032-24LB.pdf4.OD8032-24LB.pdf |
| Width | 32.00mm | Weight | - |
| Voltage Range | 12 ~ 30VDC | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.200 in H2O (49.8 Pa) |
| Size / Dimension | Square - 80.5mm L x 80.5mm H | Series | OD8032 |
| RPM | 3000 RPM | Other Names | 1053-1665 OD8032-24LB-ND OD8032-24LBX OD803224LB |
| Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) | Noise | 31.0 dB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Manufacturer Standard Lead Time | 19 Weeks |
| Lifetime @ Temp. | 60000 Hrs @ 40°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Fan Type | Tubeaxial | Current Rating | 0.230A |
| Bearing Type | Ball | Approvals | cURus, TUV |
| Air Flow | 40.0 CFM (1.12m³/min) |
