Orion Fans

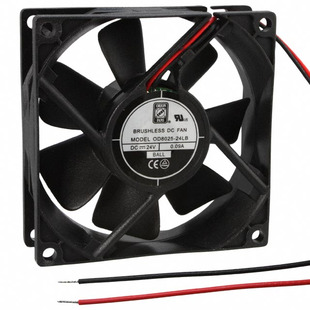

| Part Number | OD8025-24LB | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 80X25MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10139 pcs | Data sheet | 1.OD8025-24LB.pdf2.OD8025-24LB.pdf3.OD8025-24LB.pdf4.OD8025-24LB.pdf |
| Width | 25.00mm | Weight | 0.19 lb (86.18g) |
| Voltage Range | - | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.070 in H2O (17.4 Pa) |
| Size / Dimension | Square - 80mm L x 80mm H | Series | OD8025 |
| RPM | 2100 RPM | Power (Watts) | 960mW |
| Other Names | 1053-1263 OD8025-24LBX OD802524LB |
Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Noise | 23.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 19 Weeks | Lifetime @ Temp. | 65000 Hrs @ 45°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Auto Restart | Fan Type | Tubeaxial |
| Current Rating | 0.050A | Bearing Type | Ball |
| Approvals | cURus, TUV | Air Flow | 26.0 CFM (0.728m³/min) |
