Orion Fans
| Part Number | OD8025-12HB01A | Manufacturer | Orion Fans |
|---|---|---|---|

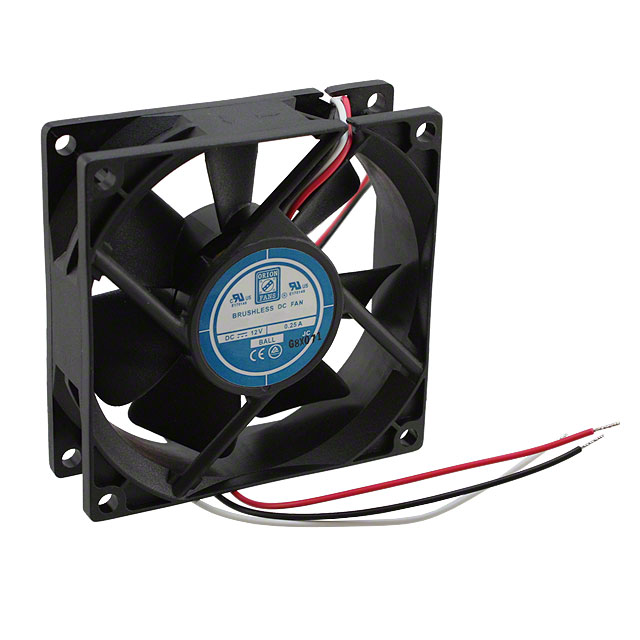

| Description | FAN AXIAL 80X25MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7969 pcs | Data sheet | 1.OD8025-12HB01A.pdf2.OD8025-12HB01A.pdf3.OD8025-12HB01A.pdf4.OD8025-12HB01A.pdf5.OD8025-12HB01A.pdf |
| Width | 25.00mm | Weight | 0.19 lb (86.18g) |
| Voltage Range | - | Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.150 in H2O (37.3 Pa) |
| Size / Dimension | Square - 80mm L x 80mm H | Series | OD8025 |
| RPM | 3100 RPM | Power (Watts) | 1.80W |
| Other Names | 1053-1256 OD8025-12HB01AX OD802512HB01A |
Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Noise | 35.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 19 Weeks | Lifetime @ Temp. | 65000 Hrs @ 45°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Auto Restart, Speed Sensor (Tach) | Fan Type | Tubeaxial |
| Current Rating | 0.180A | Bearing Type | Ball |
| Approvals | cURus, TUV | Air Flow | 40.0 CFM (1.12m³/min) |
