Orion Fans

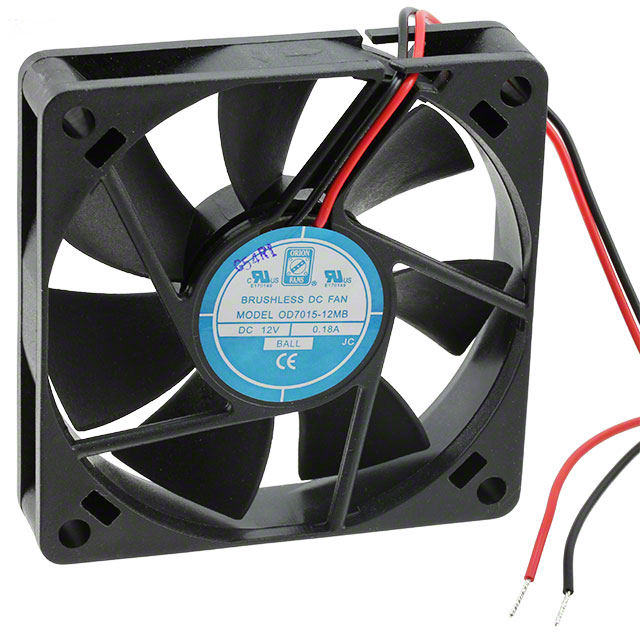

| Part Number | OD7015-12MB | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 70X15MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10573 pcs | Data sheet | 1.OD7015-12MB.pdf2.OD7015-12MB.pdf3.OD7015-12MB.pdf |
| Width | 15.50mm | Weight | 0.134 lb (60.78g) |
| Voltage Range | 10.8 ~ 13.2VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | - |
| Size / Dimension | Square - 70mm L x 70mm H | Series | OD7015 |
| RPM | 3500 RPM | Power (Watts) | 2.16W |
| Other Names | 1053-1608 OD7015-12MB-ND OD7015-12MBX OD701512MB |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 37.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Manufacturer Standard Lead Time | 19 Weeks | Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.180A | Bearing Type | Ball |
| Approvals | cURus, TUV | Air Flow | 28.5 CFM (0.798m³/min) |
