Orion Fans

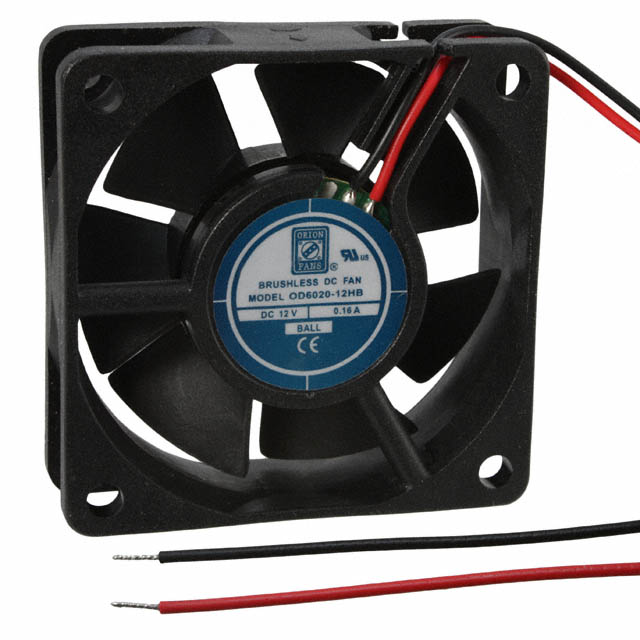

| Part Number | OD6020-12HB | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 60X20MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8371 pcs | Data sheet | 1.OD6020-12HB.pdf2.OD6020-12HB.pdf3.OD6020-12HB.pdf4.OD6020-12HB.pdf |
| Width | 20.00mm | Weight | - |
| Voltage Range | 8 ~ 16VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.140 in H2O (34.9 Pa) |
| Size / Dimension | Square - 60mm L x 60mm H | Series | OD6020 |
| RPM | 4500 RPM | Other Names | 1053-1233 OD6020-12HBX OD602012HB |
| Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) | Noise | 30.0 dB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Manufacturer Standard Lead Time | 19 Weeks |
| Lifetime @ Temp. | 60000 Hrs @ 40°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Fan Type | Tubeaxial | Current Rating | 0.160A |
| Bearing Type | Ball | Approvals | cURus, TUV |
| Air Flow | 18.0 CFM (0.504m³/min) |
