Orion Fans

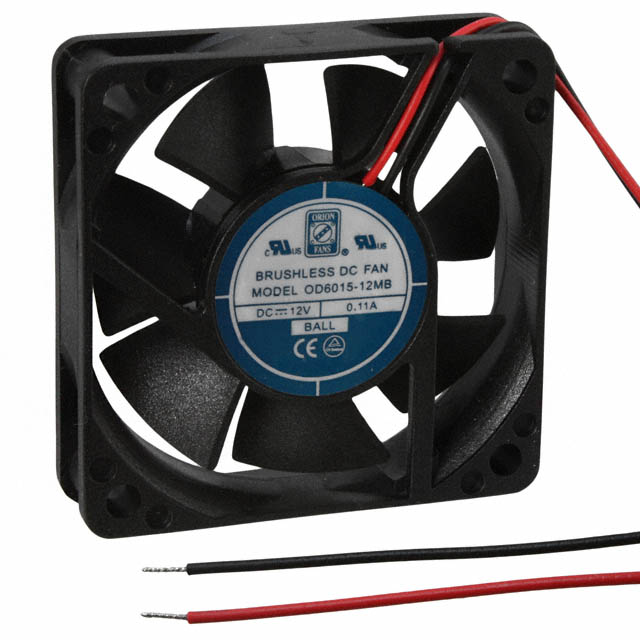

| Part Number | OD6015-12MB | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 60X15MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9279 pcs | Data sheet | 1.OD6015-12MB.pdf2.OD6015-12MB.pdf3.OD6015-12MB.pdf4.OD6015-12MB.pdf |
| Width | 15.00mm | Weight | 0.079 lb (35.83g) |
| Voltage Range | - | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.120 in H2O (29.9 Pa) |
| Size / Dimension | Square - 60mm L x 60mm H | Series | OD6015 |
| RPM | 3900 RPM | Other Names | 1053-1231 OD6015-12MBX OD601512MB |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) | Noise | 29.0 dB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Frame | Polybutylene Terephthalate (PBT) |
| Material - Blade | Polybutylene Terephthalate (PBT) | Manufacturer Standard Lead Time | 19 Weeks |
| Lifetime @ Temp. | 60000 Hrs @ 40°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | Auto Restart |
| Fan Type | Tubeaxial | Current Rating | 0.090A |
| Bearing Type | Ball | Approvals | cURus, TUV |
| Air Flow | 14.0 CFM (0.392m³/min) |
