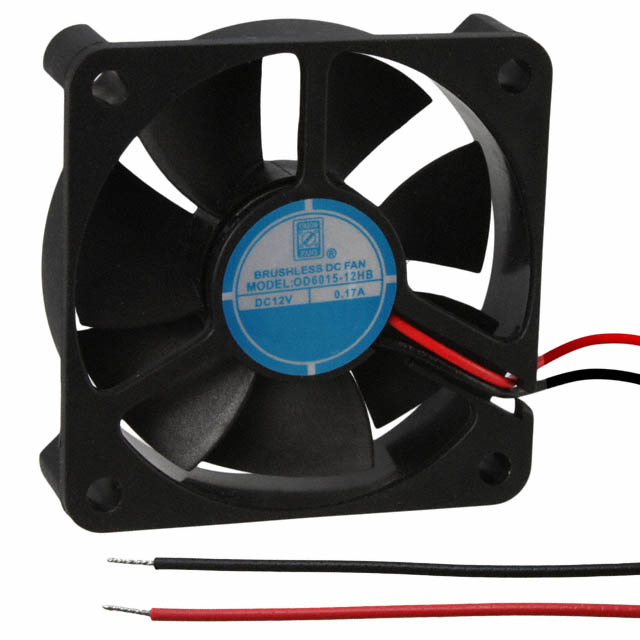

Orion Fans
| Part Number | OD6015-12HB | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 60X15MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10563 pcs | Data sheet | 1.OD6015-12HB.pdf2.OD6015-12HB.pdf3.OD6015-12HB.pdf4.OD6015-12HB.pdf |
| Width | 15.00mm | Weight | 0.079 lb (35.83g) |
| Voltage Range | - | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.150 in H2O (37.3 Pa) |
| Size / Dimension | Square - 60mm L x 60mm H | Series | OD6015 |
| RPM | 4500 RPM | Power (Watts) | 1.08W |
| Other Names | 1053-1229 OD6015-12HBX OD601512HB |
Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Noise | 33.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT) | Material - Blade | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time | 19 Weeks | Lifetime @ Temp. | 60000 Hrs @ 40°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | Auto Restart | Fan Type | Tubeaxial |
| Current Rating | 0.090A | Bearing Type | Ball |
| Approvals | cURus, TUV | Air Flow | 16.0 CFM (0.448m³/min) |
