Orion Fans

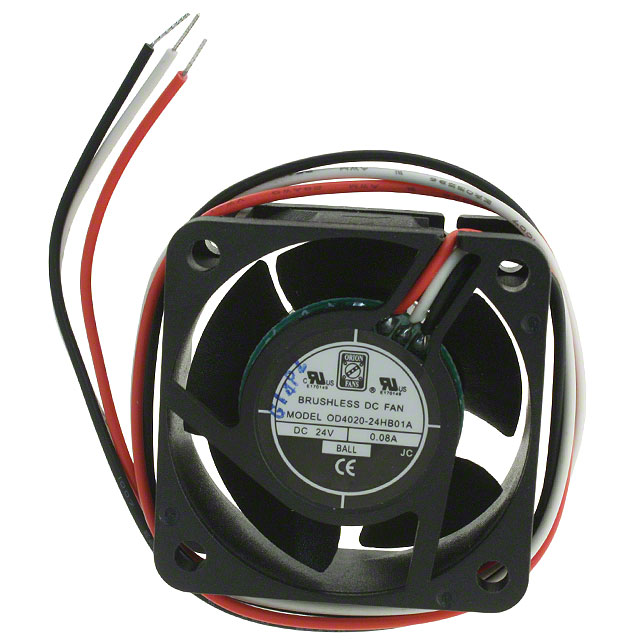

| Part Number | OD4020-24HB01A | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 40X20MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7172 pcs | Data sheet | 1.OD4020-24HB01A.pdf2.OD4020-24HB01A.pdf3.OD4020-24HB01A.pdf4.OD4020-24HB01A.pdf |
| Width | 20.00mm | Weight | - |
| Voltage Range | 10 ~ 27VDC | Voltage - Rated | 24VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.300 in H2O (74.7 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | OD4020 |
| RPM | 7800 RPM | Other Names | 1053-1219 OD4020-24HB01AX OD402024HB01A |
| Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) | Noise | 32.0 dB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Manufacturer Standard Lead Time | 19 Weeks |
| Lifetime @ Temp. | 60000 Hrs @ 45°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | Speed Sensor (Tach) |
| Fan Type | Tubeaxial | Current Rating | 0.070A |
| Bearing Type | Ball | Approvals | cURus, TUV |
| Air Flow | 9.0 CFM (0.252m³/min) |
