Orion Fans
| Part Number | OD4010-05HB | Manufacturer | Orion Fans |
|---|---|---|---|

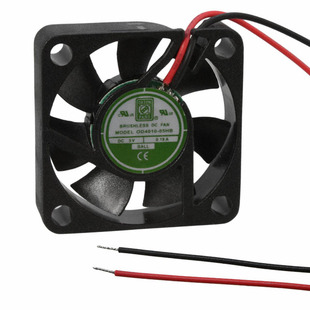

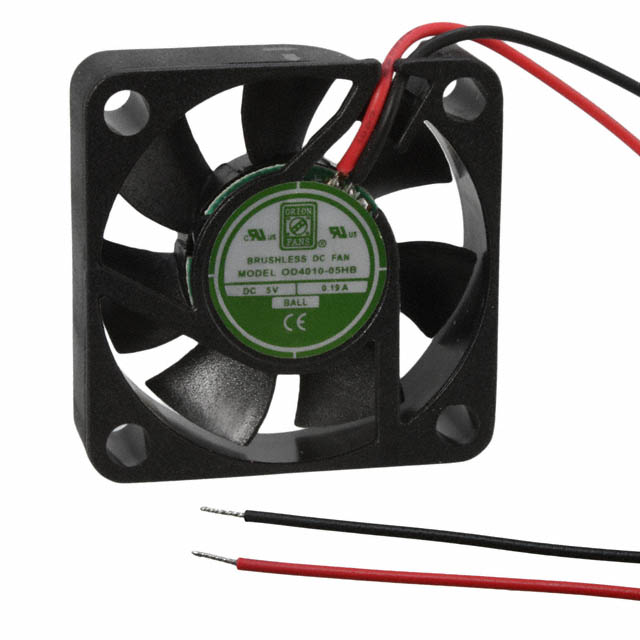

| Description | FAN AXIAL 40X10.5MM 5VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9992 pcs | Data sheet | 1.OD4010-05HB.pdf2.OD4010-05HB.pdf3.OD4010-05HB.pdf |
| Width | 10.50mm | Weight | - |
| Voltage Range | 4 ~ 7VDC | Voltage - Rated | 5VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.100 in H2O (24.9 Pa) |
| Size / Dimension | Square - 40mm L x 40mm H | Series | OD4010 |
| RPM | 6000 RPM | Other Names | 1053-1201 OD4010-05HBX OD401005HB |
| Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) | Noise | 25.0 dB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Manufacturer Standard Lead Time | 19 Weeks |
| Lifetime @ Temp. | 60000 Hrs @ 45°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Fan Type | Tubeaxial | Current Rating | 0.160A |
| Bearing Type | Ball | Approvals | cURus, TUV |
| Air Flow | 7.0 CFM (0.196m³/min) |
