Orion Fans

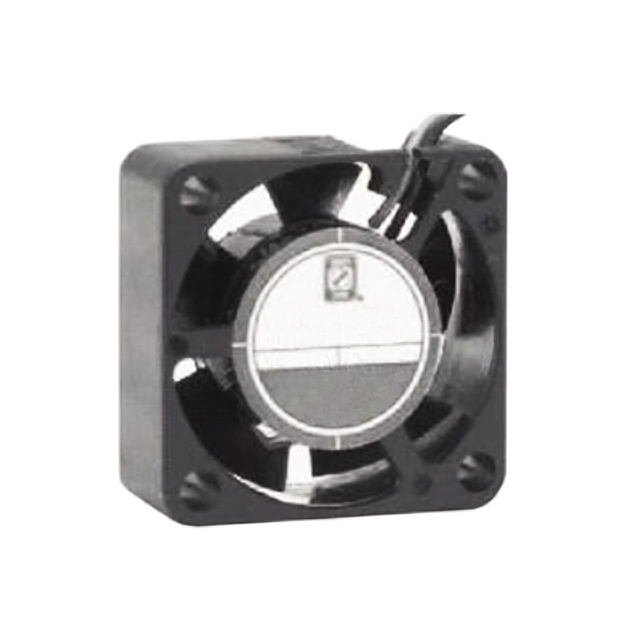

| Part Number | OD2510-12LB | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 25.5X10MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7265 pcs | Data sheet | 1.OD2510-12LB.pdf2.OD2510-12LB.pdf3.OD2510-12LB.pdf4.OD2510-12LB.pdf |
| Width | 10.00mm | Weight | - |
| Voltage Range | 6 ~ 16VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.120 in H2O (29.9 Pa) |
| Size / Dimension | Square - 25.5mm L x 25.5mm H | Series | OD2510 |
| RPM | 8000 RPM | Other Names | 1053-1641 OD2510-12LB-ND OD2510-12LBX OD251012LB |
| Operating Temperature | -13 ~ 158°F (-25 ~ 70°C) | Noise | 16.0 dB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Manufacturer Standard Lead Time | 19 Weeks |
| Lifetime @ Temp. | 60000 Hrs @ 45°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Fan Type | Tubeaxial | Current Rating | 0.040A |
| Bearing Type | Ball | Approvals | cURus, TUV |
| Air Flow | 1.8 CFM (0.050m³/min) |
