Orion Fans

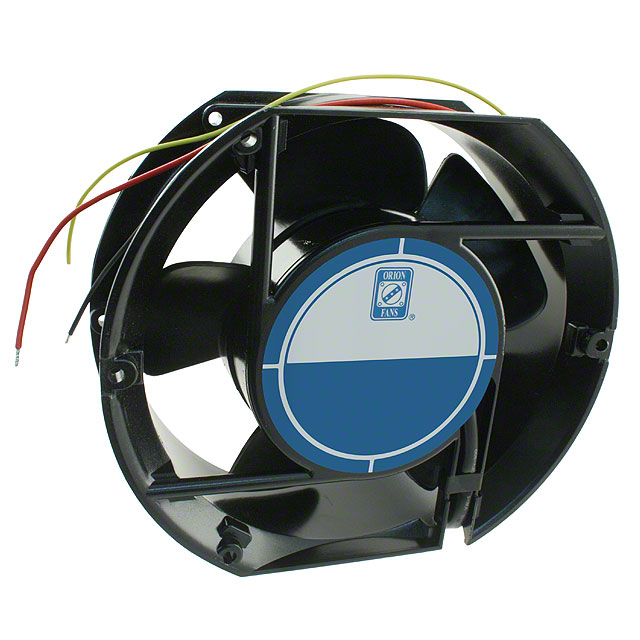

| Part Number | OD172SAP-12HB02A | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 172X50.8MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1392 pcs | Data sheet | 1.OD172SAP-12HB02A.pdf2.OD172SAP-12HB02A.pdf3.OD172SAP-12HB02A.pdf4.OD172SAP-12HB02A.pdf |
| Width | 50.80mm | Weight | - |
| Voltage Range | 8 ~ 14VDC | Voltage - Rated | 12VDC |
| Termination | 3 Wire Leads | Static Pressure | 0.750 in H2O (186.8 Pa) |
| Size / Dimension | Rectangular/Rounded - 172mm L x 150mm H | Series | OD172SAP |
| RPM | 3200 RPM | Other Names | 1053-1425 OD172SAP-12HB02AX OD172SAP12HB02A |
| Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) | Noise | 52.0 dB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Frame | Aluminum |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Manufacturer Standard Lead Time | 17 Weeks |
| Lifetime @ Temp. | 40000 Hrs @ 60°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | Locked Rotor Sensor |
| Fan Type | Tubeaxial | Current Rating | 1.9A |
| Bearing Type | Ball | Approvals | cURus, TUV |
| Air Flow | 230.0 CFM (6.44m³/min) |
