Orion Fans

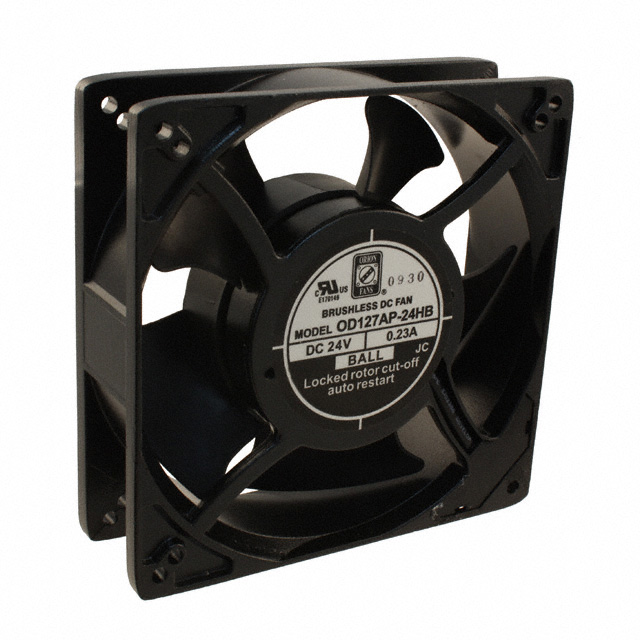

| Part Number | OD127AP-24HTB | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 127X38.5MM 24VDC TERM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2764 pcs | Data sheet | 1.OD127AP-24HTB.pdf2.OD127AP-24HTB.pdf3.OD127AP-24HTB.pdf4.OD127AP-24HTB.pdf |
| Width | 38.50mm | Weight | - |
| Voltage Range | 12 ~ 27.6VDC | Voltage - Rated | 24VDC |
| Termination | 2 Terminals | Static Pressure | 0.410 in H2O (102.1 Pa) |
| Size / Dimension | Square - 127mm L x 127mm H | Series | OD127AP |
| RPM | 3000 RPM | Other Names | 1053-1173 OD127AP-24HTBX OD127AP24HTB |
| Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) | Noise | 46.0 dB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Frame | Aluminum |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Manufacturer Standard Lead Time | 17 Weeks |
| Lifetime @ Temp. | 60000 Hrs @ 45°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Fan Type | Tubeaxial | Current Rating | 0.430A |
| Bearing Type | Ball | Approvals | cURus, TUV |
| Air Flow | 140.0 CFM (3.92m³/min) |
