Orion Fans

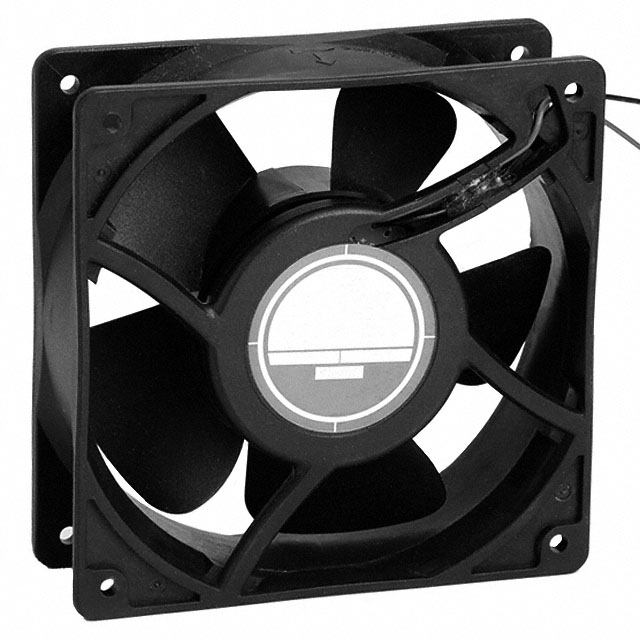

| Part Number | OD1238-24LS | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 120X38.5MM 24VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6835 pcs | Data sheet | 1.OD1238-24LS.pdf2.OD1238-24LS.pdf3.OD1238-24LS.pdf |
| Width | 38.50mm | Weight | - |
| Voltage Range | - | Voltage - Rated | 24VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.130 in H2O (32.4 Pa) |
| Size / Dimension | Square - 120mm L x 120mm H | Series | OD1238 |
| RPM | 1950 RPM | Power (Watts) | 4.00W |
| Other Names | OD1238-24LSX OD123824LS OD1238PT-24LS |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Noise | 33.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Manufacturer Standard Lead Time | 19 Weeks | Lifetime @ Temp. | 65000 Hrs @ 45°C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.140A | Bearing Type | Sleeve |
| Approvals | cURus, TUV | Air Flow | 73.0 CFM (2.04m³/min) |
