Orion Fans

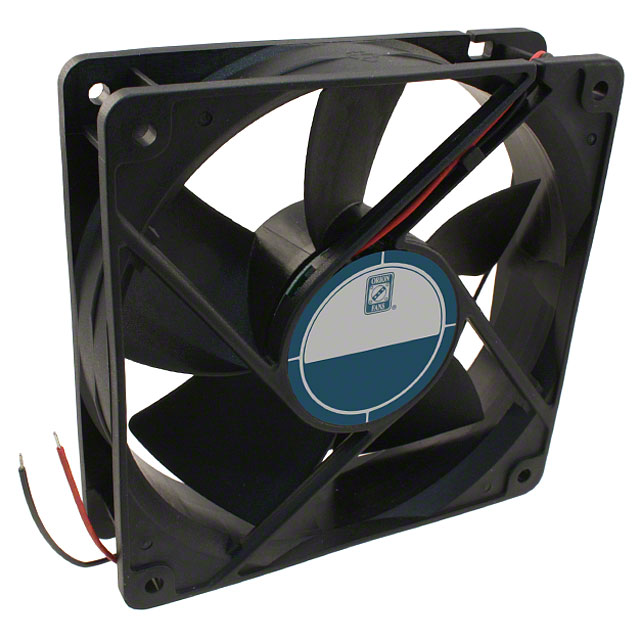

| Part Number | OD1232-12MB | Manufacturer | Orion Fans |
|---|---|---|---|
| Description | FAN AXIAL 120X32MM 12VDC WIRE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5500 pcs | Data sheet | 1.OD1232-12MB.pdf2.OD1232-12MB.pdf3.OD1232-12MB.pdf |
| Width | 32.00mm | Weight | - |
| Voltage Range | 6 ~ 13.8VDC | Voltage - Rated | 12VDC |
| Termination | 2 Wire Leads | Static Pressure | 0.330 in H2O (82.2 Pa) |
| Size / Dimension | Square - 120mm L x 120mm H | Series | OD1232 |
| RPM | 3300 RPM | Other Names | 1053-1137 OD1232-12MBX OD123212MB |
| Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) | Noise | 48.0 dB |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced | Manufacturer Standard Lead Time | 19 Weeks |
| Lifetime @ Temp. | 60000 Hrs @ 40°C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Features | - |
| Fan Type | Tubeaxial | Current Rating | 0.5A |
| Bearing Type | Ball | Approvals | cURus, TUV |
| Air Flow | 107.0 CFM (3.00m³/min) |
