OPIA815DTUE

Optek Technology / TT Electronics

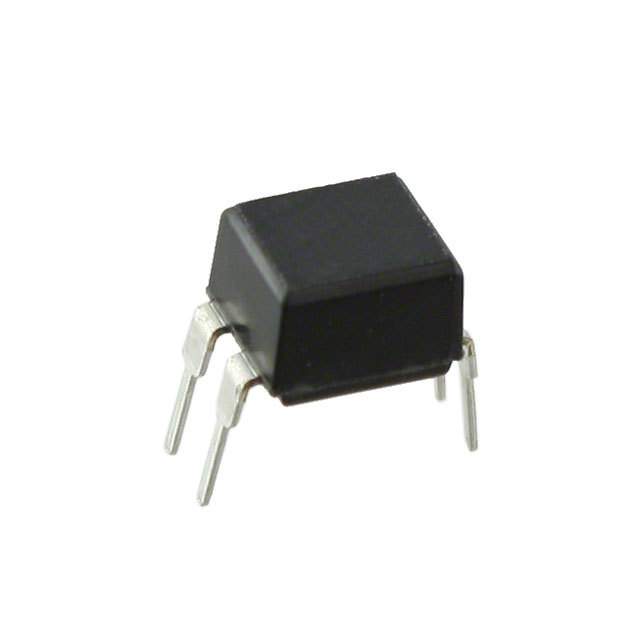

Image may be representation. See specifications for product details.

Product Overview

Part Number:	OPIA815DTUE
Manufacturer/Brand:	Optek Technology / TT Electronics
Product description	OPTOISOLTR 5KV DARLINGTON 4-DIP
Datasheets:	OPIA815DTUE.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6088 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 6088 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of OPIA815DTUE

Part Number	OPIA815DTUE	Manufacturer	Optek Technology / TT Electronics
Description	OPTOISOLTR 5KV DARLINGTON 4-DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6088 pcs	Data sheet	OPIA815DTUE.pdf
Voltage - Output (Max)	35V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	1V
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	4-DIP
Series	-	Rise / Fall Time (Typ)	80µs, 72µs
Packaging	Tube	Package / Case	4-DIP (0.300", 7.62mm)
Output Type	Darlington	Other Names	365-1438 OPIA411DTU
Operating Temperature	-30°C ~ 100°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Darlington Output 5000Vrms 1 Channel 4-DIP	Current Transfer Ratio (Min)	70% @ 50µA
Current Transfer Ratio (Max)	-	Current - Output / Channel	80mA
Current - DC Forward (If) (Max)	50mA
