OPIA5010ATUE

Optek Technology / TT Electronics

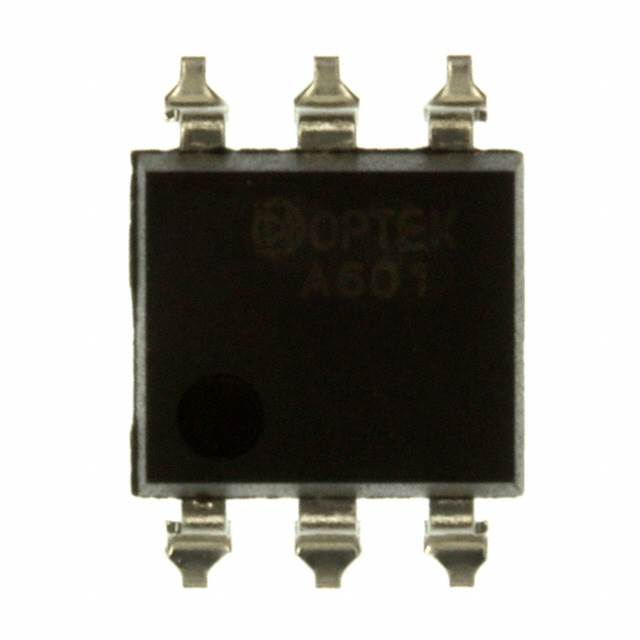

Image may be representation. See specifications for product details.

Product Overview

Part Number:	OPIA5010ATUE
Manufacturer/Brand:	Optek Technology / TT Electronics
Product description	OPTOISO 5KV DARL W/BASE 6SMD
Datasheets:	OPIA5010ATUE.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6878 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 6878 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of OPIA5010ATUE

Part Number	OPIA5010ATUE	Manufacturer	Optek Technology / TT Electronics
Description	OPTOISO 5KV DARL W/BASE 6SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6878 pcs	Data sheet	OPIA5010ATUE.pdf
Voltage - Output (Max)	300V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	1.5V
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	6-SMD
Series	-	Rise / Fall Time (Typ)	60µs, 50µs
Packaging	Tube	Package / Case	6-SMD, Gull Wing
Output Type	Darlington with Base	Other Names	365-1444 OPIA601ATU
Operating Temperature	-30°C ~ 100°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Darlington with Base Output 5000Vrms 1 Channel 6-SMD	Current Transfer Ratio (Min)	600% @ 2mA
Current Transfer Ratio (Max)	9000% @ 2mA	Current - Output / Channel	150mA
Current - DC Forward (If) (Max)	50mA
