OPIA401BTR

Optek Technology / TT Electronics

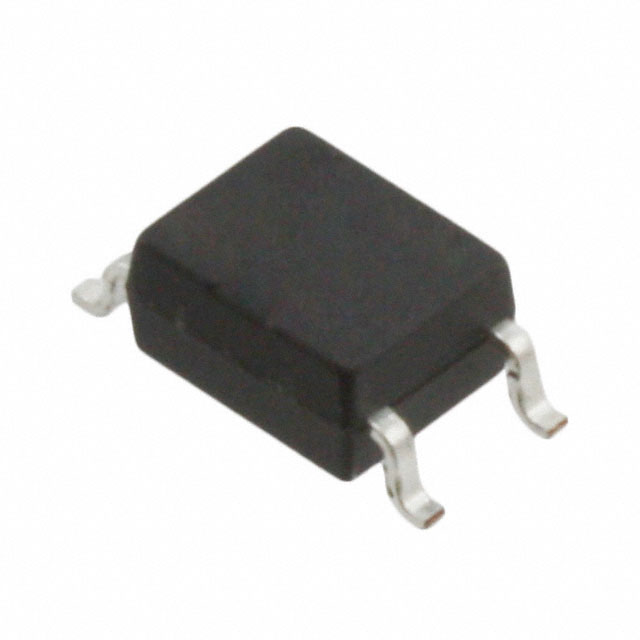

Image may be representation. See specifications for product details.

Product Overview

Part Number:	OPIA401BTR
Manufacturer/Brand:	Optek Technology / TT Electronics
Product description	OPTOISO 3.75KV DARLINGTON 4SOP
Datasheets:	OPIA401BTR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6283 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 6283 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of OPIA401BTR

Part Number	OPIA401BTR	Manufacturer	Optek Technology / TT Electronics
Description	OPTOISO 3.75KV DARLINGTON 4SOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6283 pcs	Data sheet	OPIA401BTR.pdf
Voltage - Output (Max)	300V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	1.5V
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	4-SOP (2.54mm)
Series	-	Rise / Fall Time (Typ)	100µs, 20µs
Packaging	Tape & Reel (TR)	Package / Case	4-SMD, Gull Wing
Output Type	Darlington	Other Names	365-1413-2
Operating Temperature	-30°C ~ 100°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	DC
Detailed Description	Optoisolator Darlington Output 3750Vrms 1 Channel 4-SOP (2.54mm)	Current Transfer Ratio (Min)	1000% @ 1mA
Current Transfer Ratio (Max)	-	Current - Output / Channel	150mA
Current - DC Forward (If) (Max)	50mA
