HCC242

Optek Technology / TT Electronics

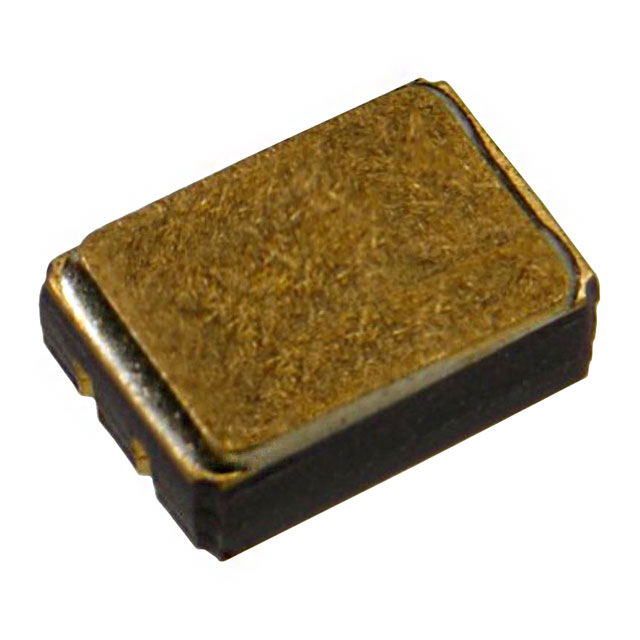

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HCC242
Manufacturer/Brand:	Optek Technology / TT Electronics
Product description	OPTOISOLATOR 1KV TRANS 4-CLCC
Datasheets:	HCC242.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	4018 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4018 pcs

Reference Price (In US Dollars)

100 pcs: $7.355

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.355

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HCC242

Part Number	HCC242	Manufacturer	Optek Technology / TT Electronics
Description	OPTOISOLATOR 1KV TRANS 4-CLCC	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	4018 pcs	Data sheet	HCC242.pdf
Voltage - Output (Max)	30V	Voltage - Isolation	1000VDC
Voltage - Forward (Vf) (Typ)	1.5V (Max)	Vce Saturation (Max)	300mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	4-CLCC (5.59x3.81)
Series	-	Rise / Fall Time (Typ)	20µs, 20µs
Packaging	Bulk	Package / Case	4-SMD, No Lead
Output Type	Transistor	Operating Temperature	-55°C ~ 125°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Input Type	DC
Detailed Description	Optoisolator Transistor Output 1000VDC 1 Channel 4-CLCC (5.59x3.81)	Current Transfer Ratio (Min)	100% @ 10mA
Current Transfer Ratio (Max)	-	Current - Output / Channel	50mA
Current - DC Forward (If) (Max)	40mA
