4N48UTX

Optek Technology / TT Electronics

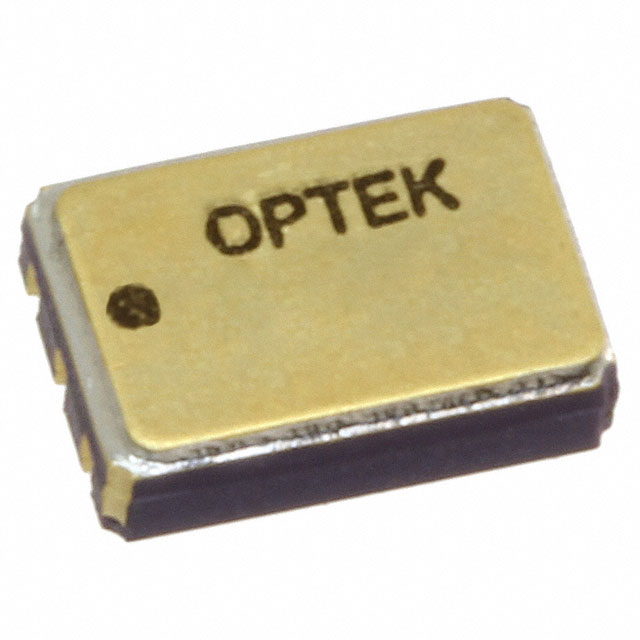

Image may be representation. See specifications for product details.

Product Overview

Part Number:	4N48UTX
Manufacturer/Brand:	Optek Technology / TT Electronics
Product description	OPTOISO 1KV TRANS W/BASE 6LCC
Datasheets:	4N48UTX.pdf
RoHs Status	Lead free / Not applicable
Stock Condition	5976 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5976 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 4N48UTX

Part Number	4N48UTX	Manufacturer	Optek Technology / TT Electronics
Description	OPTOISO 1KV TRANS W/BASE 6LCC	Lead Free Status / RoHS Status	Lead free / Not applicable
Quantity Available	5976 pcs	Data sheet	4N48UTX.pdf
Voltage - Output (Max)	45V	Voltage - Isolation	1000VDC
Voltage - Forward (Vf) (Typ)	1.5V (Max)	Vce Saturation (Max)	300mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	6-LCC (6.22x4.32)
Series	-	Rise / Fall Time (Typ)	20µs, 20µs
Packaging	Bulk	Package / Case	6-SMD, No Lead
Output Type	Transistor with Base	Operating Temperature	-55°C ~ 125°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / Not applicable
Input Type	DC	Detailed Description	Optoisolator Transistor with Base Output 1000VDC 1 Channel 6-LCC (6.22x4.32)
Current Transfer Ratio (Min)	100% @ 2mA	Current Transfer Ratio (Max)	-
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	40mA
