4N22ATX

Optek Technology / TT Electronics

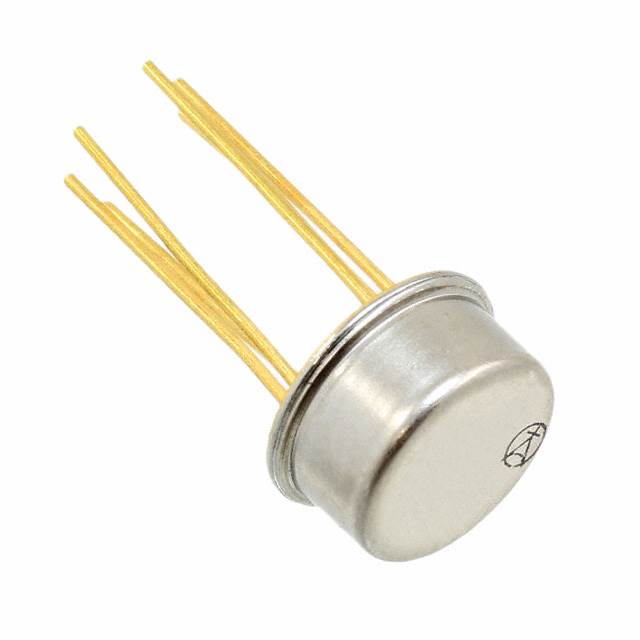

Image may be representation. See specifications for product details.

Product Overview

Part Number:	4N22ATX
Manufacturer/Brand:	Optek Technology / TT Electronics
Product description	OPTOISO 1KV TRANS W/BASE TO78-6
Datasheets:	4N22ATX.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	3100 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 3100 pcs

Reference Price (In US Dollars)

100 pcs: $9.921

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$9.921

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 4N22ATX

Part Number	4N22ATX	Manufacturer	Optek Technology / TT Electronics
Description	OPTOISO 1KV TRANS W/BASE TO78-6	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	3100 pcs	Data sheet	4N22ATX.pdf
Voltage - Output (Max)	35V	Voltage - Isolation	1000VDC
Voltage - Forward (Vf) (Typ)	1.3V (Max)	Vce Saturation (Max)	300mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	TO-78-6
Series	-	Rise / Fall Time (Typ)	15µs, 15µs
Packaging	Bulk	Package / Case	TO-78-6 Metal Can
Output Type	Transistor with Base	Operating Temperature	-65°C ~ 125°C
Number of Channels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Input Type	DC	Detailed Description	Optoisolator Transistor with Base Output 1000VDC 1 Channel TO-78-6
Current Transfer Ratio (Min)	25% @ 10mA	Current Transfer Ratio (Max)	-
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	40mA
