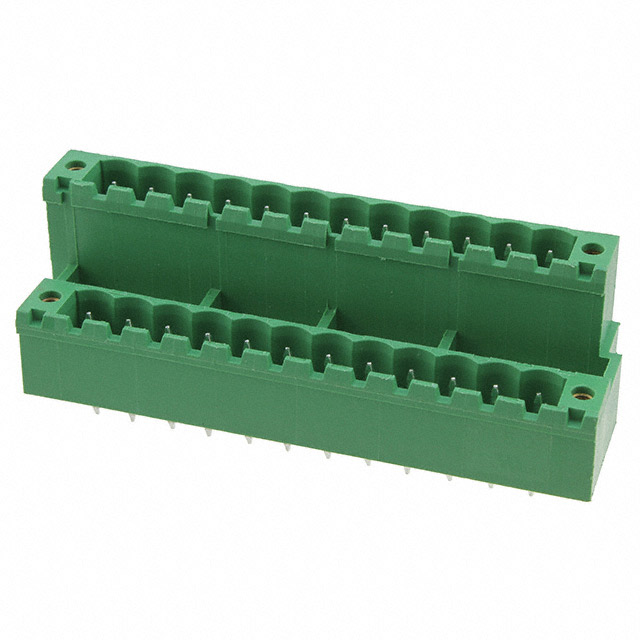

On-Shore Technology, Inc.
| Part Number | OSTVF247250 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK HDR 24POS VERT 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21180 pcs | Data sheet | OSTVF247250.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | OSTVF |
| Screw Size | - | Positions Per Level | 12 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Operating Temperature | -30°C ~ 105°C |
| Number of Positions | 24 | Number of Levels | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.866" (22.00mm) |
| Ingress Protection | - | Housing Material | Thermoplastic |
| Header Orientation | Vertical | Features | Mating Flange |
| Detailed Description | 24 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | 0.154" (3.90mm) |
| Contact Mating Finish | - | Contact Material | Brass |
| Color | Green |
