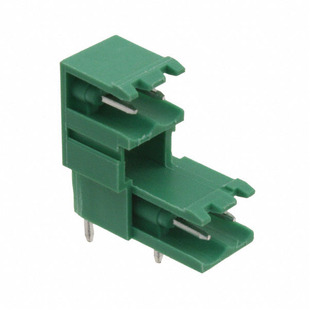

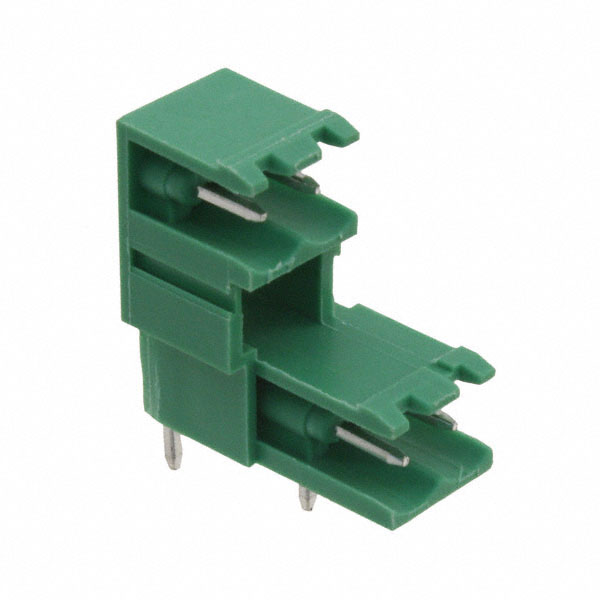

On-Shore Technology, Inc.
| Part Number | OSTVF045051 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK HDR 4POS 90DEG 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75894 pcs | Data sheet | OSTVF045051.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (2 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | OSTVF |
| Screw Size | - | Positions Per Level | 2 |
| Plug Wire Entry | - | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | ED2763 OSTVF025051 |
| Operating Temperature | -40°C ~ 115°C | Number of Positions | 4 |
| Number of Levels | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.933" (23.70mm) | Ingress Protection | - |
| Housing Material | Thermoplastic | Header Orientation | 90°, Right Angle |
| Features | Interlocking (Side) | Detailed Description | 4 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole |
| Current - UL | 10A | Current - IEC | - |
| Contact Tail Length | 0.157" (4.00mm) | Contact Mating Finish | Tin |
| Contact Material | Copper | Color | Green |
