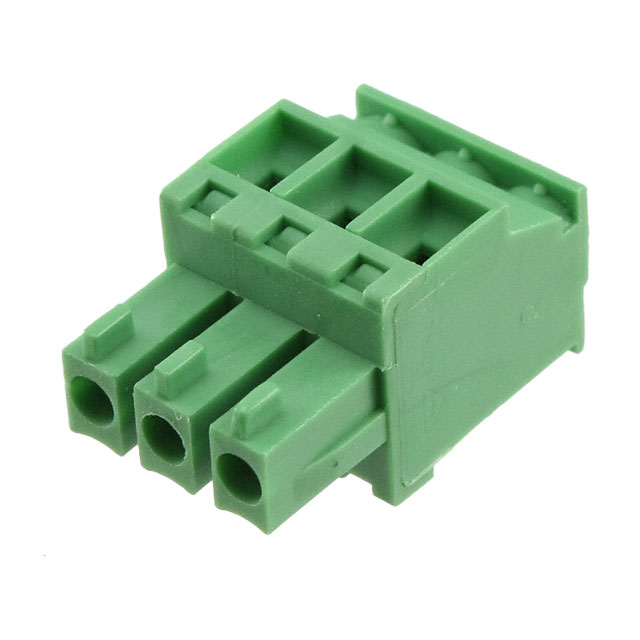

On-Shore Technology, Inc.
| Part Number | OSTTS03315A | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK PLUG 3POS 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48747 pcs | Data sheet | OSTTS03315A.pdf |
| Wire Strip Length | 6-7mm | Wire Gauge or Range - mm² | 1.5mm² |
| Wire Gauge or Range - AWG | 16-28 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | 0.2 Nm (1.7 Lb-In) |
| Termination Style | Screw | Series | OSTTS |
| Screw Size | - | Positions Per Level | 3 |
| Plug Wire Entry | - | Pitch | 0.150" (3.81mm) |
| Packaging | Bulk | Other Names | ED2886 OSTTS03315A-ND |
| Operating Temperature | -30°C ~ 105°C | Number of Positions | 3 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | - | Ingress Protection | - |
| Housing Material | Brass | Header Orientation | - |
| Features | - | Detailed Description | 3 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) Free Hanging (In-Line) |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | - | Contact Material | Brass |
| Color | Green |
