On-Shore Technology, Inc.
| Part Number | OSTTJ107150 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|

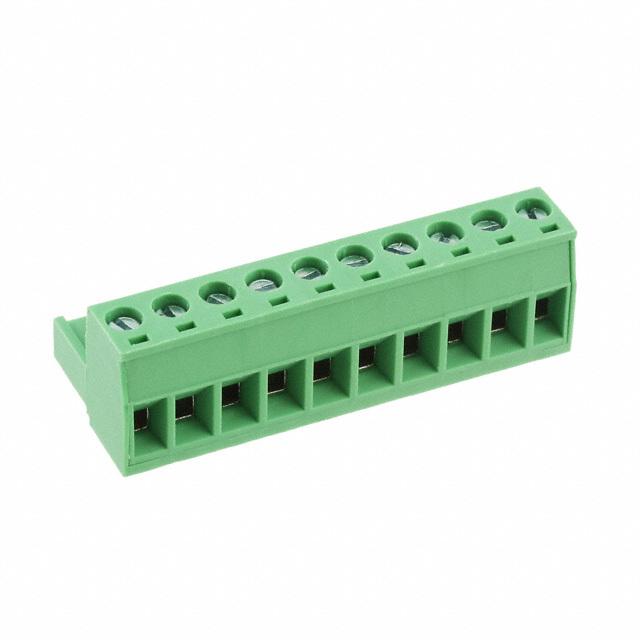

| Description | TERM BLOCK PLUG 10POS STR 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18575 pcs | Data sheet | OSTTJ107150.pdf |
| Wire Strip Length | 7-8mm | Wire Gauge or Range - mm² | 0.34-2.5mm² |
| Wire Gauge or Range - AWG | 12-24 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | 0.56 Nm (5.0 Lb-In) |
| Termination Style | Screw | Series | OSTTJ |
| Screw Size | - | Positions Per Level | 10 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | ED2775 OSTTJ107150-ND |
| Operating Temperature | -30°C ~ 105°C | Number of Positions | 10 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | - | Ingress Protection | - |
| Housing Material | Brass | Header Orientation | - |
| Features | - | Detailed Description | 10 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) Free Hanging (In-Line) |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | - | Contact Material | Brass |
| Color | Green |
