On-Shore Technology, Inc.
| Part Number | OSTTJ065153 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK PLUG 6POS STR 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36163 pcs | Data sheet | OSTTJ065153.pdf |
| Wire Strip Length | 7-8mm | Wire Gauge or Range - mm² | 0.34-2.5mm² |
| Wire Gauge or Range - AWG | 12-24 AWG | Voltage - UL | 300V |
| Voltage - IEC | 300V | Type | Plug, Female Sockets |
| Torque - Screw | 0.56 Nm (5.0 Lb-In) | Termination Style | Screw |
| Series | OSTTJ | Screw Size | - |
| Positions Per Level | 6 | Plug Wire Entry | - |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | ED2912 OSTTJ065153-ND |
Operating Temperature | -30°C ~ 105°C |
| Number of Positions | 6 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | - |
| Ingress Protection | - | Housing Material | Brass |
| Header Orientation | - | Features | Retention Latches (Non-Wire Side) |

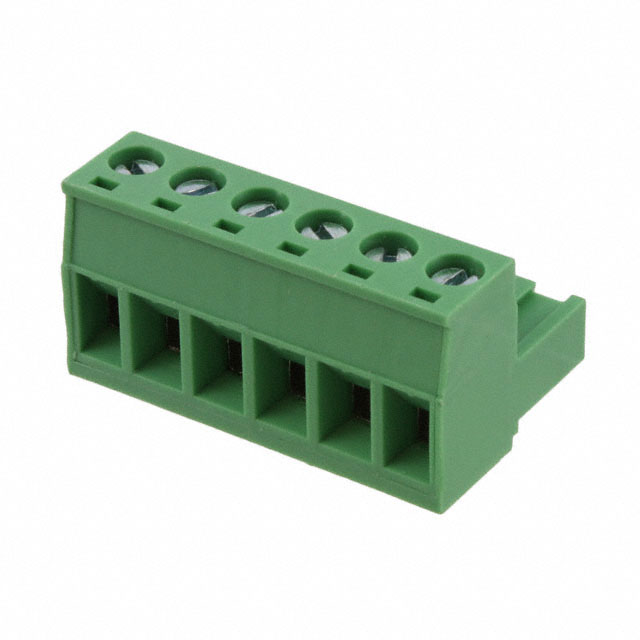

| Detailed Description | 6 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) Free Hanging (In-Line) | Current - UL | 20A |
| Current - IEC | 20A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Brass |
| Color | Green |
