On-Shore Technology, Inc.

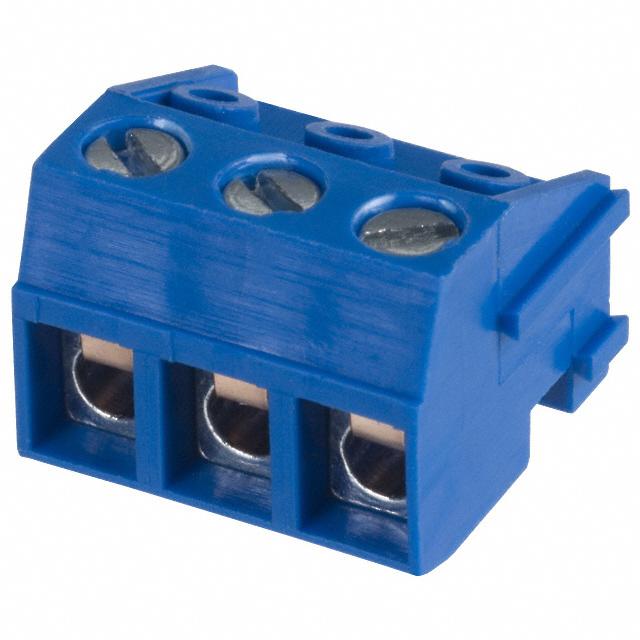

| Part Number | OSTTH030160 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK PLUG 3POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 89453 pcs | Data sheet | OSTTH030160.pdf |
| Wire Strip Length | 5-6mm | Wire Gauge or Range - mm² | 0.34-1.5mm² |
| Wire Gauge or Range - AWG | 14-22 AWG | Voltage - UL | 300V |
| Type | Plug for Unshrouded Header | Torque - Screw | 0.4 Nm (3.5 Lb-In) |
| Termination Style | Screw | Series | OSTTH |
| Screw Size | - | Positions Per Level | 3 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | ED2656 EDC130/3DS |
| Operating Temperature | -40°C ~ 115°C | Number of Positions | 3 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | - | Ingress Protection | - |
| Housing Material | Brass | Header Orientation | - |
| Features | Interlocking (Side) | Detailed Description | 3 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) Free Hanging (In-Line) |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Nickel | Contact Material | Brass |
| Color | Blue |
