On-Shore Technology, Inc.

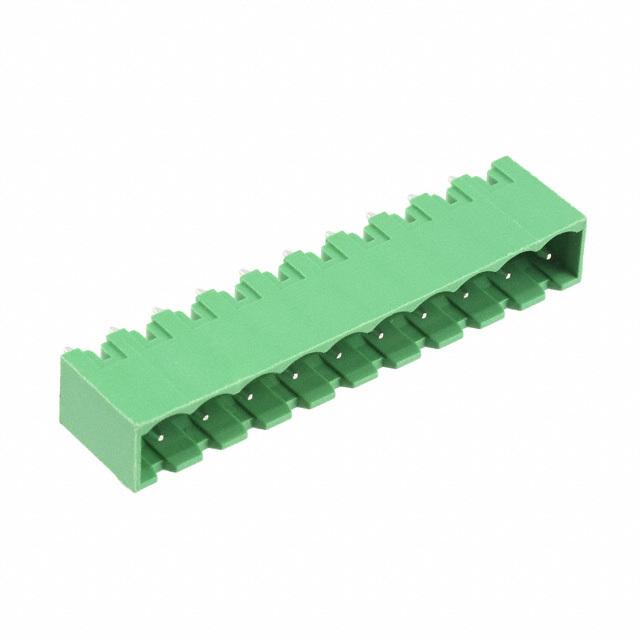

| Part Number | OSTOQ105450 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK HDR 10POS VERT 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61137 pcs | Data sheet | OSTOQ105450.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | - | Series | OSTOQ |
| Screw Size | - | Positions Per Level | 10 |
| Plug Wire Entry | - | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | ED2839 OSTOQ105450-ND |
| Operating Temperature | -30°C ~ 105°C | Number of Positions | 10 |
| Number of Levels | 1 | Mounting Type | Solder |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.157" (4.00mm) | Ingress Protection | - |
| Housing Material | Brass | Header Orientation | Vertical |
| Features | - | Detailed Description | 10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Solder |
| Current - IEC | - | Contact Tail Length | 0.157" (4.00mm) |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | - |
