On-Shore Technology, Inc.
| Part Number | OSTOQ060151 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|

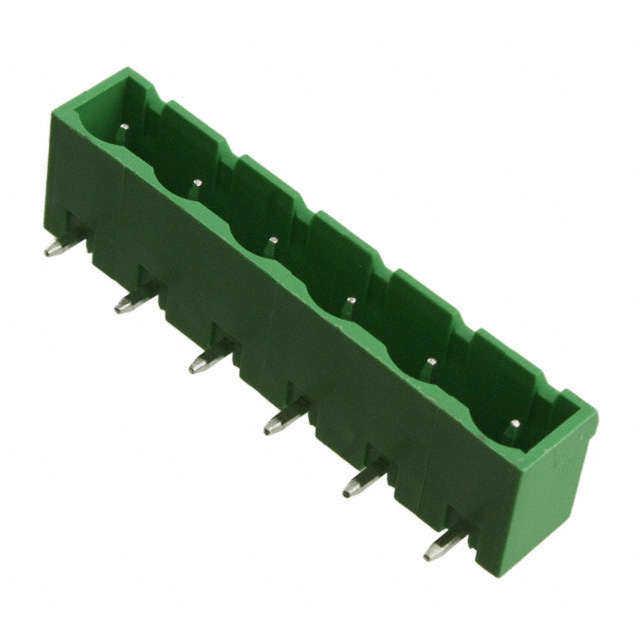

| Description | TERM BLOCK HDR 6POS 90DEG 7.62MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75659 pcs | Data sheet | OSTOQ060151.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | - | Series | OSTOQ |
| Screw Size | - | Positions Per Level | 6 |
| Plug Wire Entry | - | Pitch | 0.300" (7.62mm) |
| Packaging | Bulk | Other Names | ED2854 OSTOQ060151-ND |
| Operating Temperature | -30°C ~ 105°C | Number of Positions | 6 |
| Number of Levels | 1 | Mounting Type | Solder |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.157" (4.00mm) | Ingress Protection | - |
| Housing Material | Brass | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) 90°, Right Angle Solder |
| Current - IEC | - | Contact Tail Length | 0.157" (4.00mm) |
| Contact Mating Finish | Tin | Contact Material | - |
| Color | - |
