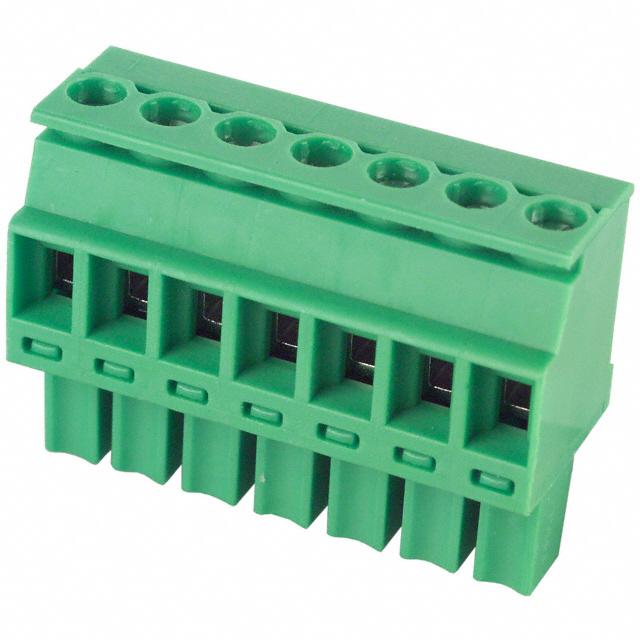

On-Shore Technology, Inc.
| Part Number | EDZ1710/7 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK PLUG 7POS 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18615 pcs | Data sheet | EDZ1710/7.pdf |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 1.5mm² |
| Wire Gauge or Range - AWG | 16-28 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | 0.4 Nm (3.5 Lb-In) |
| Termination Style | Screw | Series | EDZ1710 |
| Screw Size | - | Positions Per Level | 7 |
| Plug Wire Entry | - | Pitch | 0.150" (3.81mm) |
| Packaging | Bulk | Other Names | ED2471 EDZ17107 |
| Operating Temperature | -30°C ~ 105°C | Number of Positions | 7 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | - | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | - | Detailed Description | 7 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) Free Hanging (In-Line) |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | - | Contact Material | Copper Tin Alloy |
| Color | Green |
