On-Shore Technology, Inc.
| Part Number | EDSTLZ955/12 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|

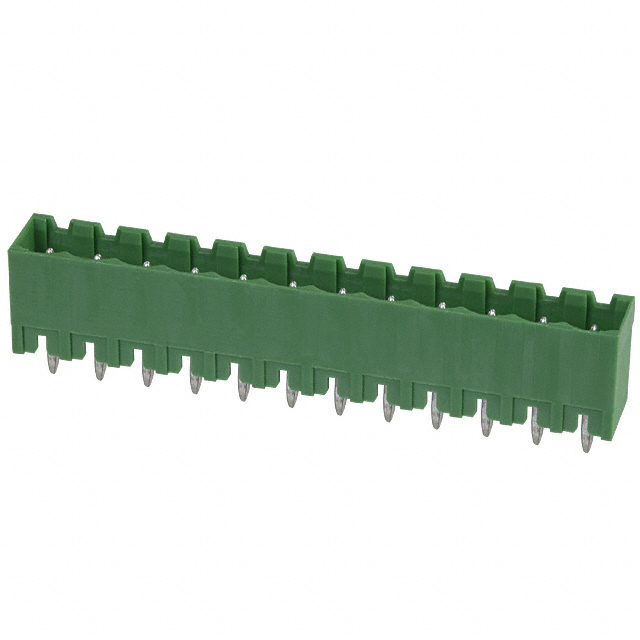

| Description | TERM BLOCK HDR 12POS VERT 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32282 pcs | Data sheet | EDSTLZ955/12.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | - | Series | EDSTLZ955 |
| Screw Size | - | Positions Per Level | 12 |
| Plug Wire Entry | - | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | ED1859 EDSTLZ95512 |
| Operating Temperature | -30°C ~ 105°C | Number of Positions | 12 |
| Number of Levels | 1 | Mounting Type | Solder |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.154" (3.90mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | Vertical |
| Features | - | Detailed Description | 12 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Solder |
| Current - IEC | - | Contact Tail Length | 0.154" (3.90mm) |
| Contact Mating Finish | - | Contact Material | - |
| Color | - |
