On-Shore Technology, Inc.

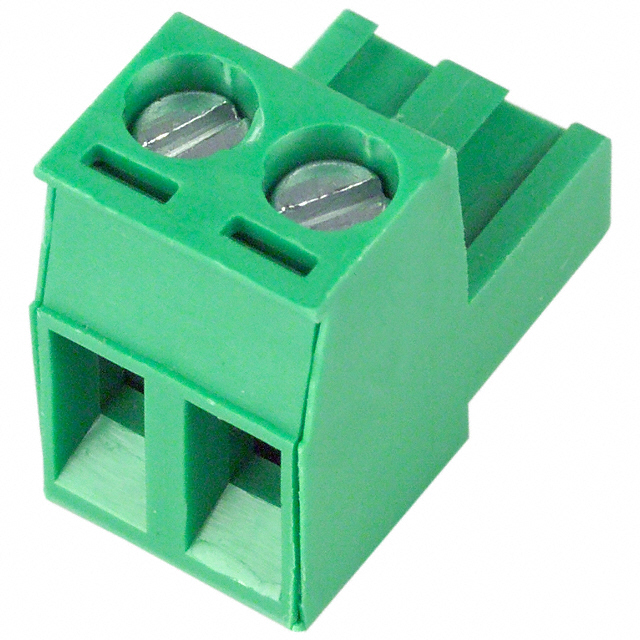

| Part Number | ED950/2 | Manufacturer | On-Shore Technology, Inc. |
|---|---|---|---|
| Description | TERM BLOCK PLUG 2POS STR 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48195 pcs | Data sheet | ED950/2.pdf |
| Wire Strip Length | 6mm | Wire Gauge or Range - mm² | 2.5mm² |
| Wire Gauge or Range - AWG | 12-22 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | 0.5 Nm (4.4 Lb-In) |
| Termination Style | Screw | Series | ED950 |
| Screw Size | M3 | Positions Per Level | 2 |
| Plug Wire Entry | 180° | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | ED1701 ED9502 |
| Operating Temperature | -30°C ~ 105°C | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.591" (15.00mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | Retention Latches (Non-Wire Side) | Detailed Description | 2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line) |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | - |
| Contact Material | Copper | Color | Green |
