ED555/7DS

On-Shore Technology, Inc.

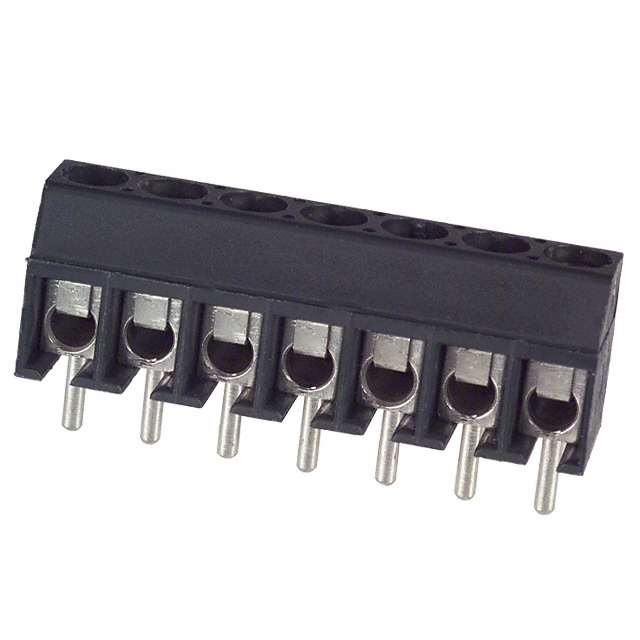

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ED555/7DS
Manufacturer/Brand:	On-Shore Technology, Inc.
Product description	TERMINAL BLOCK 3.5MM 7POS PCB
Datasheets:	ED555/7DS.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	39196 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 39196 pcs

Reference Price (In US Dollars)

1 pcs: $0.867

10 pcs: $0.656

25 pcs: $0.608

50 pcs: $0.547

100 pcs: $0.533

250 pcs: $0.467

500 pcs: $0.427

1000 pcs: $0.387

5000 pcs: $0.34

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.867

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ED555/7DS

Part Number	ED555/7DS	Manufacturer	On-Shore Technology, Inc.
Description	TERMINAL BLOCK 3.5MM 7POS PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	39196 pcs	Data sheet	ED555/7DS.pdf
Wire Termination	Screw - Leaf Spring, Wire Guard	Wire Gauge	16-28 AWG
Voltage	150V	Torque - Screw	0.4 Nm (3.5 Lb-In)
Series	ED555/DS	Screw Thread	M2
Screw Material - Plating	-	Positions Per Level	7
Pitch	0.138" (3.50mm)	Packaging	Bulk
Other Names	ED1519 ED555/7 ED5557DS	Operating Temperature	-30°C ~ 105°C
Number of Levels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mating Orientation	Horizontal with Board
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Polyamide (PA), Nylon	Features	-
Detailed Description	7 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole	Current	6A
Contact Material - Plating	Brass	Color	Gray
Clamp Material - Plating	Steel, Stainless
