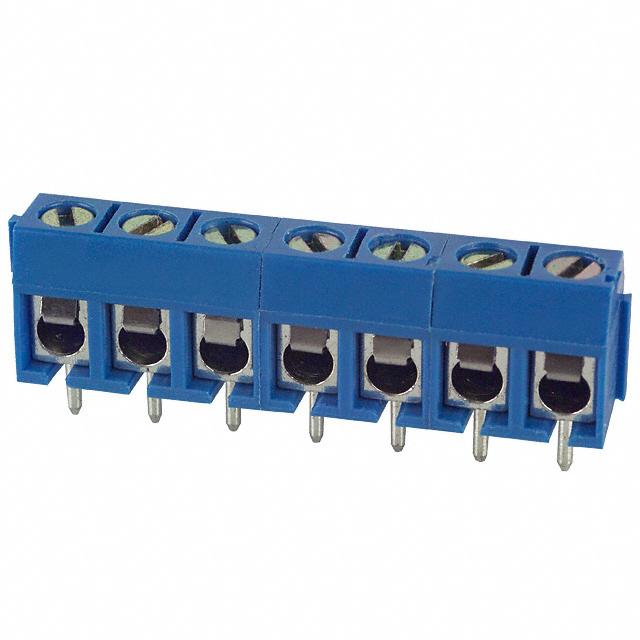

ED500/7DS

On-Shore Technology, Inc.

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ED500/7DS
Manufacturer/Brand:	On-Shore Technology, Inc.
Product description	TERMINAL BLOCK 5MM 7POS PCB
Datasheets:	ED500/7DS.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	41653 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 41653 pcs

Reference Price (In US Dollars)

1 pcs: $0.802

10 pcs: $0.607

25 pcs: $0.563

50 pcs: $0.506

100 pcs: $0.493

250 pcs: $0.432

500 pcs: $0.395

1000 pcs: $0.358

5000 pcs: $0.315

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.802

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ED500/7DS

Part Number	ED500/7DS	Manufacturer	On-Shore Technology, Inc.
Description	TERMINAL BLOCK 5MM 7POS PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	41653 pcs	Data sheet	ED500/7DS.pdf
Wire Termination	Screw - Leaf Spring, Wire Guard	Wire Gauge	14-22 AWG
Voltage	300V	Torque - Screw	0.4 Nm (3.5 Lb-In)
Series	ED500/DS	Screw Thread	M2.6
Screw Material - Plating	-	Positions Per Level	7
Pitch	0.197" (5.00mm)	Packaging	Bulk
Other Names	ED2224 ED5007DS	Operating Temperature	-30°C ~ 105°C
Number of Levels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mating Orientation	Horizontal with Board
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Polyamide (PA), Nylon	Features	-
Detailed Description	7 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole	Current	15A
Contact Material - Plating	Brass	Color	Blue
Clamp Material - Plating	Steel, Stainless
