ED3101/7-WD

On-Shore Technology, Inc.

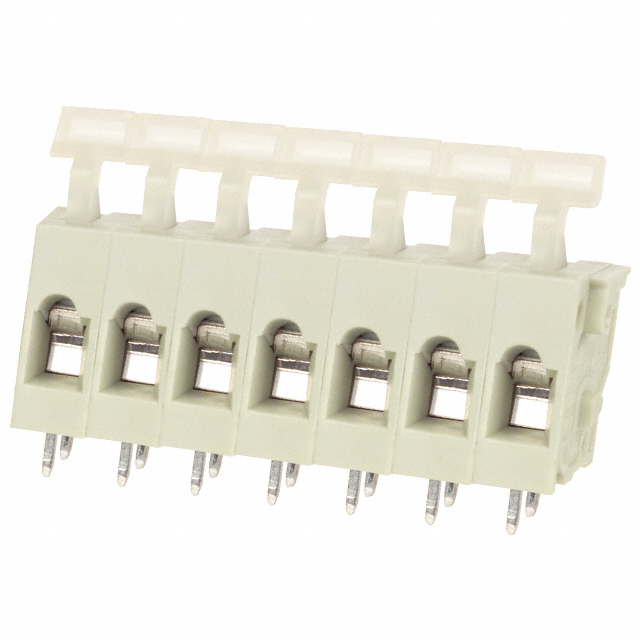

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ED3101/7-WD
Manufacturer/Brand:	On-Shore Technology, Inc.
Product description	TERMINAL BLOCK 5MM 7POS PCB
Datasheets:	ED3101/7-WD.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	38673 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 38673 pcs

Reference Price (In US Dollars)

50 pcs: $0.828

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.828

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ED3101/7-WD

Part Number	ED3101/7-WD	Manufacturer	On-Shore Technology, Inc.
Description	TERMINAL BLOCK 5MM 7POS PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38673 pcs	Data sheet	ED3101/7-WD.pdf
Wire Termination	Screwless - Leg Spring, Push-In Spring	Wire Gauge	14-28 AWG
Voltage	300V	Torque - Screw	-
Series	ED3101/WD	Screw Thread	-
Screw Material - Plating	-	Positions Per Level	7
Pitch	0.197" (5.00mm)	Packaging	Bulk
Other Names	ED2298	Operating Temperature	-30°C ~ 105°C
Number of Levels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mating Orientation	Horizontal with Board
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Polyamide (PA), Nylon	Features	Interlocking (Side), Lever Actuated
Detailed Description	7 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole	Current	16A
Contact Material - Plating	-	Color	Gray, Slate
Clamp Material - Plating	Steel, Stainless
