ED125/3DS

On-Shore Technology, Inc.

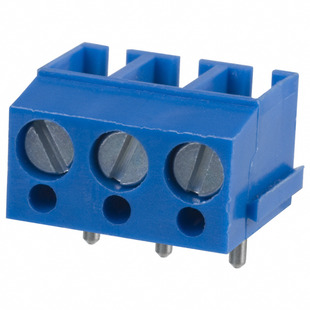

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ED125/3DS
Manufacturer/Brand:	On-Shore Technology, Inc.
Product description	TERMINAL BLOCK 5.08MM HORZ 3POS
Datasheets:	ED125/3DS.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	69063 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 69063 pcs

Reference Price (In US Dollars)

1 pcs: $0.571

10 pcs: $0.40

25 pcs: $0.373

50 pcs: $0.339

100 pcs: $0.337

250 pcs: $0.285

500 pcs: $0.27

1000 pcs: $0.24

5000 pcs: $0.195

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.571

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ED125/3DS

Part Number	ED125/3DS	Manufacturer	On-Shore Technology, Inc.
Description	TERMINAL BLOCK 5.08MM HORZ 3POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	69063 pcs	Data sheet	ED125/3DS.pdf
Wire Termination	Screw - Leaf Spring, Wire Guard	Wire Gauge	14-22 AWG
Voltage	300V	Torque - Screw	0.5 Nm (4.4 Lb-In)
Series	ED125/DS	Screw Thread	M3
Screw Material - Plating	-	Positions Per Level	3
Pitch	0.200" (5.08mm)	Packaging	Bulk
Other Names	ED125-3DS ED1253DS ED1612	Operating Temperature	-30°C ~ 105°C
Number of Levels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mating Orientation	Vertical with Board
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Housing Material	Polyamide (PA), Nylon	Features	Interlocking (Side)
Detailed Description	3 Position Wire to Board Terminal Block Vertical with Board 0.200" (5.08mm) Through Hole	Current	15A
Contact Material - Plating	Brass	Color	Blue
Clamp Material - Plating	Steel, Stainless
