Omron

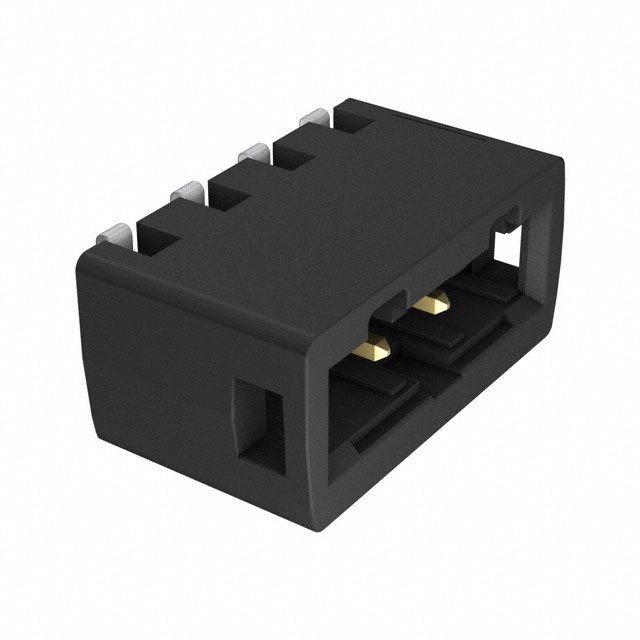

| Part Number | XW4K-02A1-H1 | Manufacturer | Omron |
|---|---|---|---|
| Description | TERM BLOCK HDR 2POS 90DEG 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 115368 pcs | Data sheet | XW4K-02A1-H1.pdf |
| Wire Strip Length | 6mm | Wire Gauge or Range - mm² | 0.14 ~ 0.5mm² |
| Wire Gauge or Range - AWG | 20-26 AWG | Voltage - UL | 160V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | XW4 |
| Screw Size | - | Positions Per Level | 2 |
| Plug Wire Entry | - | Pitch | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) | Other Names | XW4K-02A1-H1-ND XW4K02A1H1 Z5627 Z5627-ND Z5627TR |
| Operating Temperature | -45°C ~ 125°C | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 19 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.293" (7.44mm) | Ingress Protection | - |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Header Orientation | 90°, Right Angle |
| Features | Board Guide, Latches | Detailed Description | 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.100" (2.54mm) 90°, Right Angle Surface Mount |
| Current - UL | 6A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
