Omron

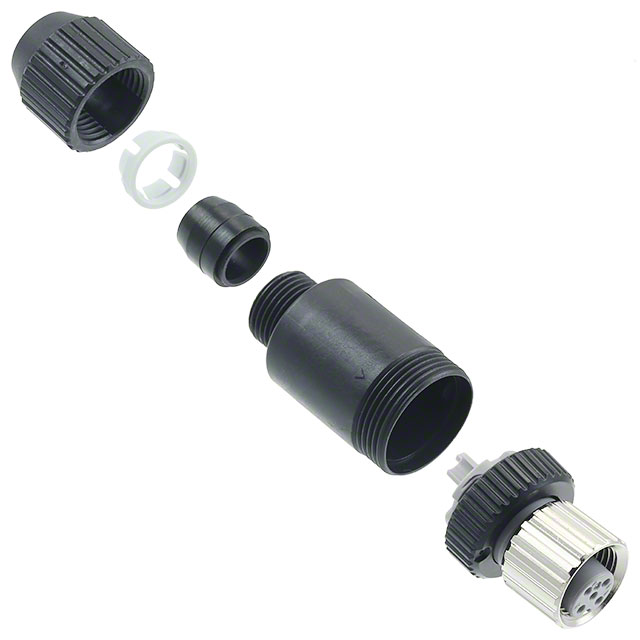

| Part Number | XS2C-D4S7 | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN RCPT FMALE 4POS GOLD SCREW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4525 pcs | Data sheet | XS2C-D4S7.pdf |
| Voltage Rating | 125VDC | Termination | Screw |
| Shielding | - | Shell Size, MIL | - |
| Shell Size - Insert | M12-4 | Shell Material | Brass |
| Shell Finish | Nickel | Series | XS2 |
| Packaging | Bulk | Other Names | OR1089 XS2C-D4S7-ND XS2CD4S7 |
| Orientation | Keyed | Operating Temperature | -25°C ~ 70°C |
| Number of Positions | 4 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polybutylene Terephthalate (PBT) |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | Backshell, Coupling Nut |
| Fastening Type | Threaded | Detailed Description | 4 Position Circular Connector Receptacle, Female Sockets Screw Gold |
| Current Rating | 3A | Contact Material | Brass |
| Contact Finish Thickness - Mating | 16.0µin (0.40µm) | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Female Sockets | Color | Black, Silver |
| Cable Opening | 0.276" ~ 0.315" (7.00mm ~ 8.00mm) | Backshell Material, Plating | Polybutylene Terephthalate (PBT) |
| Applications | - |
