Omron

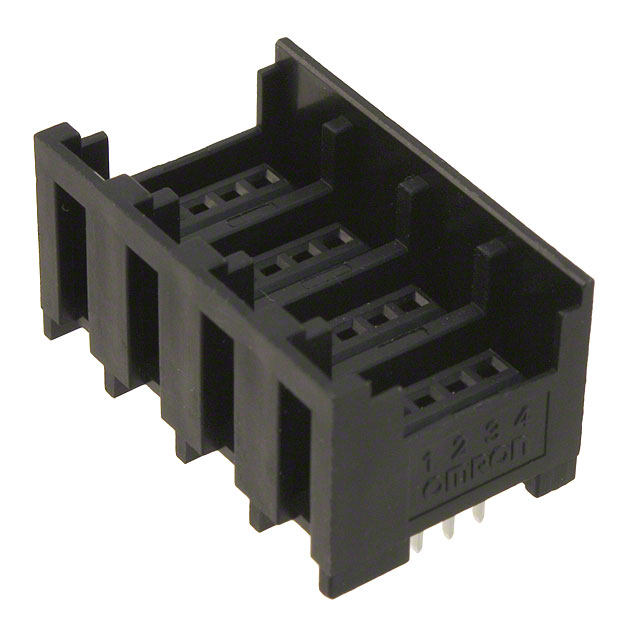

| Part Number | XN2D-4471 | Manufacturer | Omron |
|---|---|---|---|
| Description | CONNECTOR SKT QUAD 4POS ECON PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19030 pcs | Data sheet | XN2D-4471.pdf |
| Voltage Rating | 32VDC | Termination | Press-Fit, Solder |
| Style | Board to Cable/Wire | Series | XN2 |
| Row Spacing - Mating | 0.256" (6.50mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Other Names | OR1031 XN2D4471 |
| Operating Temperature | -30°C ~ 75°C | Number of Rows | 4 |
| Number of Positions Loaded | All | Number of Positions | 16 (4 x 4 Ports) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 5 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.512" (13.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Detent Lock |
| Detailed Description | 16 (4 x 4 Ports) Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.130" (3.30mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
