Omron

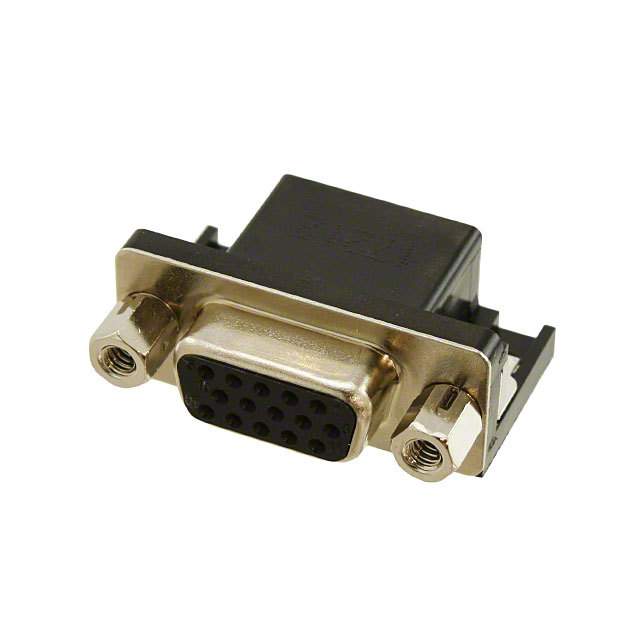

| Part Number | XM4L-1542-132 | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN DSUB HD RCPT 15POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35658 pcs | Data sheet | XM4L-1542-132.pdf |
| Wire Gauge | - | Voltage Rating | 300V |
| Termination | Solder | Shell Size, Connector Layout | 1 (DE, E) High Density |
| Shell Material, Finish | Steel | Series | XM4L |
| Packaging | Bulk | Other Names | OR1096 XM4L-1542-132-ND XM4L1542132 XM4L1542132NC |
| Operating Temperature | -25°C ~ 105°C | Number of Rows | 3 |
| Number of Positions | 15 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | Board Lock, Shielded | Detailed Description | 15 Position D-Sub, High Density Receptacle, Female Sockets Connector |
| Current Rating | 3A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, High Density |
| Color | Black | Backset Spacing | 0.350" (8.89mm) |
