Omron

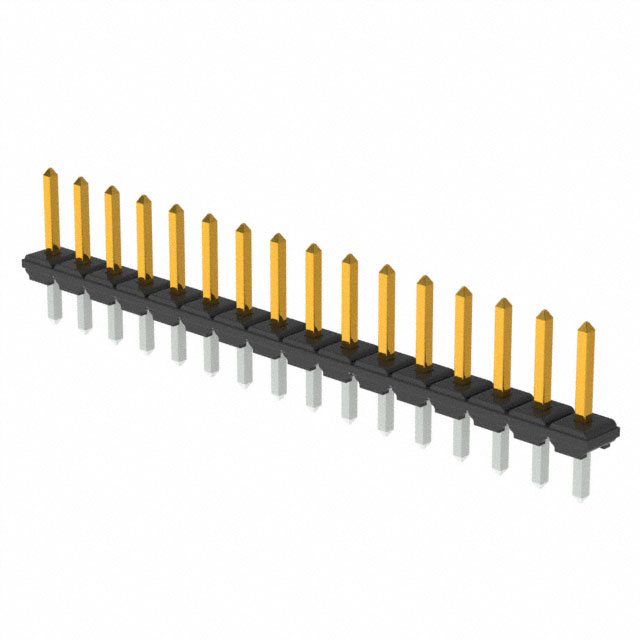

| Part Number | XJ8B-1611 | Manufacturer | Omron |
|---|---|---|---|
| Description | JUMPER PLUG 16POS SING ROW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35905 pcs | Data sheet | 1.XJ8B-1611.pdf2.XJ8B-1611.pdf |
| Voltage Rating | 300V | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | XJ8 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.339" (8.60mm) | Other Names | XJ8B-1611-ND XJ8B1611 XJ8B1611-ND Z8752 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 16 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled | Insulation Height | 0.059" (1.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 16 position 0.100" (2.54mm) | Current Rating | 2A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass, Nickel | Contact Length - Post | 0.110" (2.79mm) |
| Contact Length - Mating | 0.169" (4.30mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
