Omron

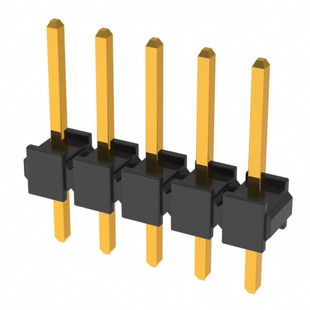

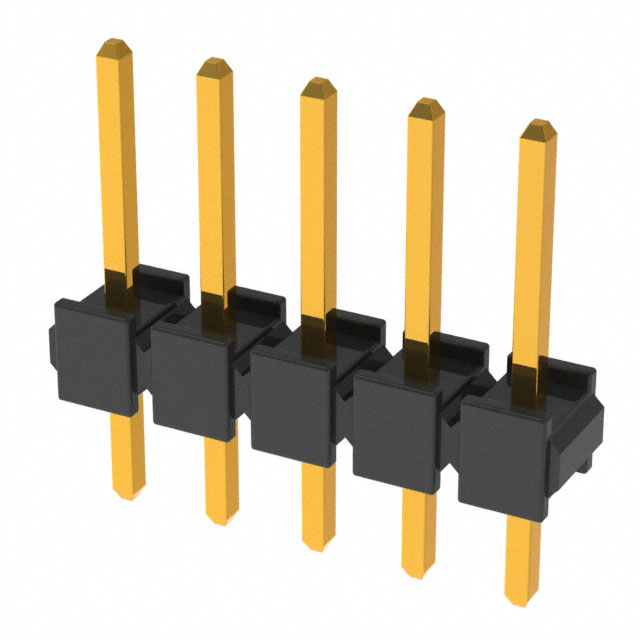

| Part Number | XG8V-0531 | Manufacturer | Omron |
|---|---|---|---|
| Description | JUMPER PLUG 5POS SING ROW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 355335 pcs | Data sheet | XG8V-0531.pdf |
| Voltage Rating | 300V | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | XG8 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.453" (11.50mm) | Other Names | XG8V0531 XG8V0531-ND |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 5 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.098" (2.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 5 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass, Nickel | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | 0.236" (6.00mm) | Contact Finish Thickness - Post | 5.90µin (0.150µm) |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
