Omron

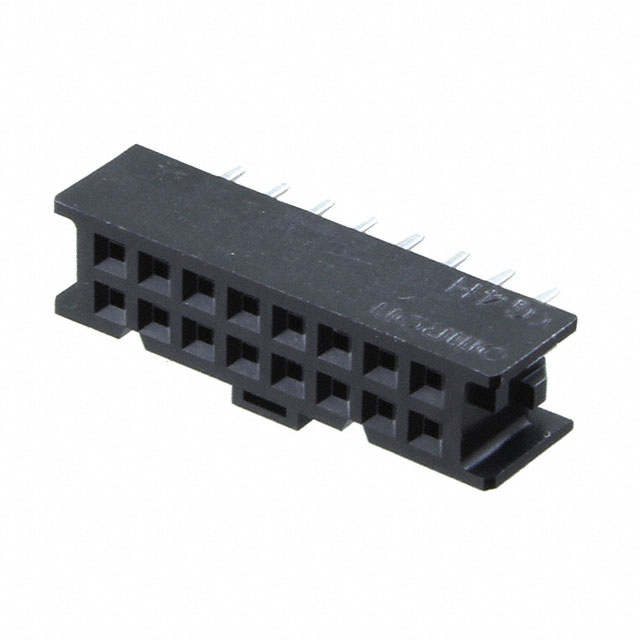

| Part Number | XG4H-1631 | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN SOCKET 16POS STRAIGHT PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32162 pcs | Data sheet | XG4H-1631.pdf |
| Voltage Rating | 300VAC | Termination | Solder |
| Style | Board to Board | Series | XG4 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | XG4H-1631-ND XG4H1631 Z6491 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 16 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 9.7mm, 10.1mm |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.283" (7.19mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Polarizing Key | Fastening Type | Latch Holder |
| Detailed Description | 16 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.122" (3.10mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
