XG4A-2632

Omron

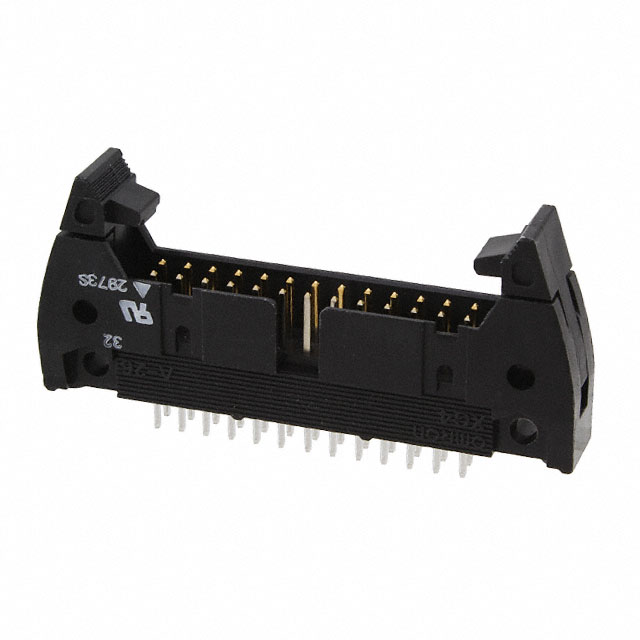

Image may be representation. See specifications for product details.

Product Overview

Part Number:	XG4A-2632
Manufacturer/Brand:	Omron
Product description	CONN PLUG 26POS 3A 300V STRT DIP
Datasheets:	XG4A-2632.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	56025 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 56025 pcs

Reference Price (In US Dollars)

1 pcs: $0.614

10 pcs: $0.556

100 pcs: $0.476

500 pcs: $0.397

1000 pcs: $0.34

5000 pcs: $0.328

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.614

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of XG4A-2632

Part Number	XG4A-2632	Manufacturer	Omron
Description	CONN PLUG 26POS 3A 300V STRT DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	56025 pcs	Data sheet	XG4A-2632.pdf
Voltage Rating	300V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	XG4	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	0.657" (16.70mm)	Other Names	OR1094 XG4A-2632 BY OMZ XG4A-2632-ND XG4A2632 XG4A2632BYOMZ
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	26
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	23.5mm
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Insulation Height	0.669" (17.00mm)	Insulation Color	Black
Ingress Protection	-	Features	Keying Slot, Mounting Flange
Fastening Type	Latch Lock/Eject Hooks, Short	Detailed Description	Connector Header Through Hole 26 position 0.100" (2.54mm)
Current Rating	3A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass, Nickel
Contact Length - Post	0.126" (3.20mm)	Contact Length - Mating	0.240" (6.10mm)
Contact Finish Thickness - Post	78.7µin (2.00µm)	Contact Finish Thickness - Mating	5.90µin (0.150µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
