XG4A-1639-A

Omron

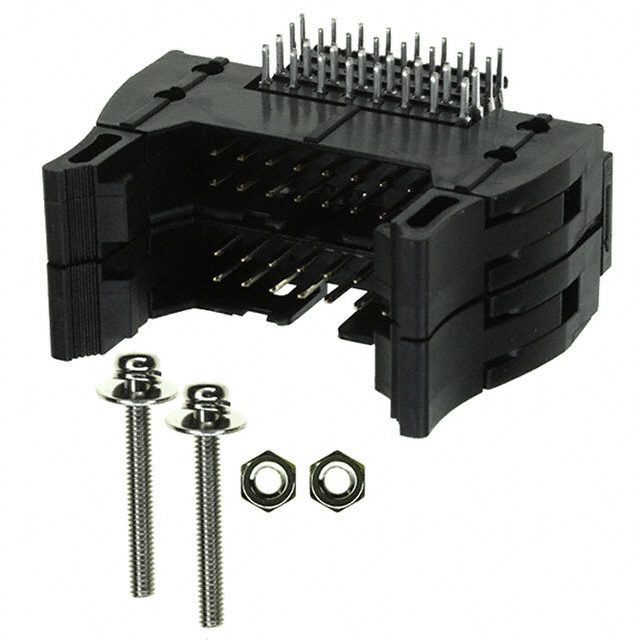

Image may be representation. See specifications for product details.

Product Overview

Part Number:	XG4A-1639-A
Manufacturer/Brand:	Omron
Product description	CONN PLUG 16POS 3A 300V R/A DIP
Datasheets:	XG4A-1639-A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	11695 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 11695 pcs

Reference Price (In US Dollars)

1 pcs: $2.724

49 pcs: $2.384

147 pcs: $2.157

539 pcs: $1.816

1029 pcs: $1.64

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.724

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of XG4A-1639-A

Part Number	XG4A-1639-A	Manufacturer	Omron
Description	CONN PLUG 16POS 3A 300V R/A DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	11695 pcs	Data sheet	XG4A-1639-A.pdf
Voltage Rating	300V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	XG4	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	-	Other Names	OR879 XG4A1639A XG4A1639A-ND
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	16, 16
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Insulation Height	0.669" (17.00mm)	Insulation Color	Black
Ingress Protection	-	Features	Keying Slot, Mounting Flange, Mounting Hardware
Fastening Type	Latch Lock/Eject Hooks, Long	Detailed Description	Connector Header Through Hole, Right Angle 16, 16 position 0.100" (2.54mm)
Current Rating	3A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass, Nickel
Contact Length - Post	-	Contact Length - Mating	0.240" (6.10mm)
Contact Finish Thickness - Post	78.7µin (2.00µm)	Contact Finish Thickness - Mating	5.90µin (0.150µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header, Stackable (2)	Applications	-
