Omron

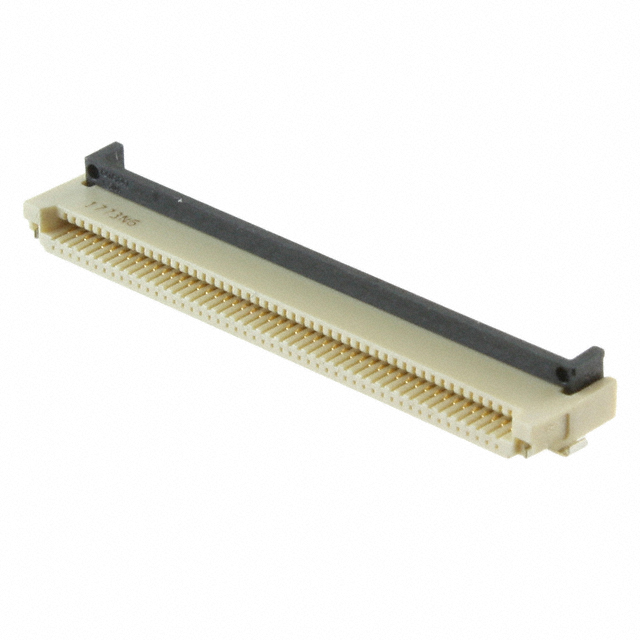

| Part Number | XF3M-5015-1B | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FFC FPC 50POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37339 pcs | Data sheet | XF3M-5015-1B.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | XF3M | Pitch | 0.020" (0.50mm) |
| Packaging | Cut Tape (CT) | Other Names | OR1185CT |
| Operating Temperature | -30°C ~ 85°C | Number of Positions | 50 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 15 Weeks | Locking Feature | Rotary Lock, Backlock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Housing Color | Natural | Height Above Board | 0.079" (2.00mm) |
| Flat Flex Type | FFC, FPC | Features | Solder Retention |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 50 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A | Contact Material | Copper Alloy |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Top and Bottom | Cable End Type | Tapered |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free | Actuator Color | Black |
