Omron

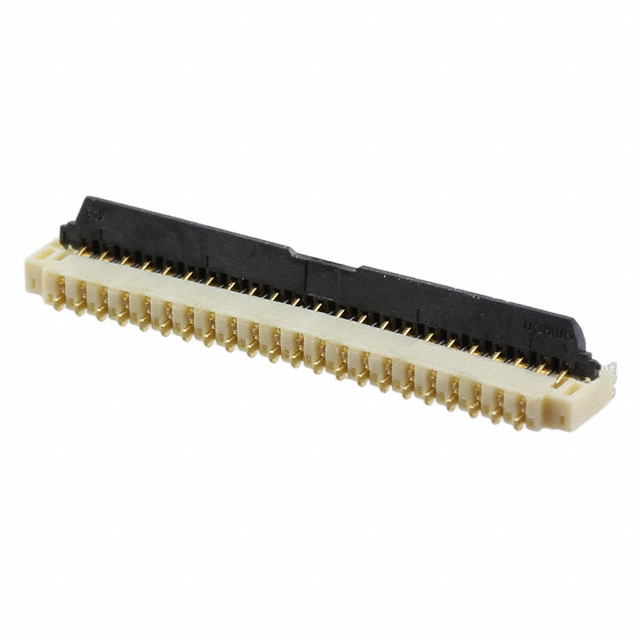

| Part Number | XF3H-4555-31AR | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FPC BOTTOM 45POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5823 pcs | Data sheet | XF3H-4555-31AR.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | XF3H-AR | Pitch | 0.012" (0.30mm) |
| Packaging | Tape & Reel (TR) | Other Names | OR1173TR XF3H455531AR |
| Operating Temperature | -30°C ~ 85°C | Number of Positions | 45 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Rotary Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Housing Color | Natural |
| Height Above Board | 0.037" (0.95mm) | Flat Flex Type | FPC |
| Features | - | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 45 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 5.90µin (0.150µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Color | Black |
