Omron

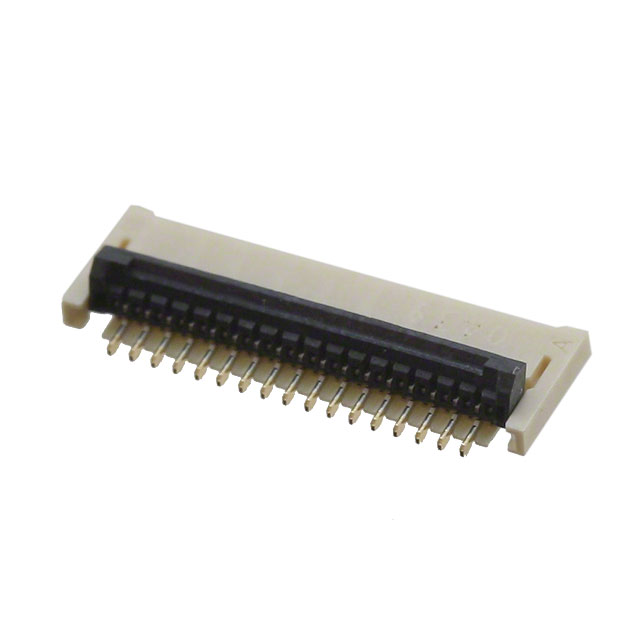

| Part Number | XF3C-3545-41A | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FPC 35POS 0.25MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5768 pcs | Data sheet | XF3C-3545-41A.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | XF3C | Pitch | 0.010" (0.25mm) |
| Packaging | Tape & Reel (TR) | Other Names | OR788TR XF3C-3545-41A BY OMZ XF3C354541A XF3C354541ABYOMZ |
| Operating Temperature | -30°C ~ 85°C | Number of Positions | 35 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Rotary Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Housing Color | Natural |
| Height Above Board | 0.033" (0.84mm) | Flat Flex Type | FPC |
| Features | - | FFC, FCB Thickness | 0.12mm |
| Detailed Description | 35 Position FPC Connector Contacts, Top and Bottom 0.010" (0.25mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 5.90µin (0.150µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Straight | Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Color | Black |
